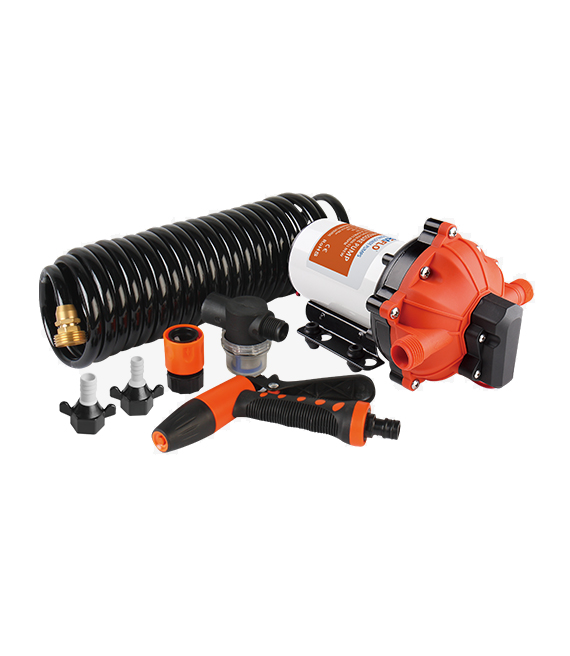

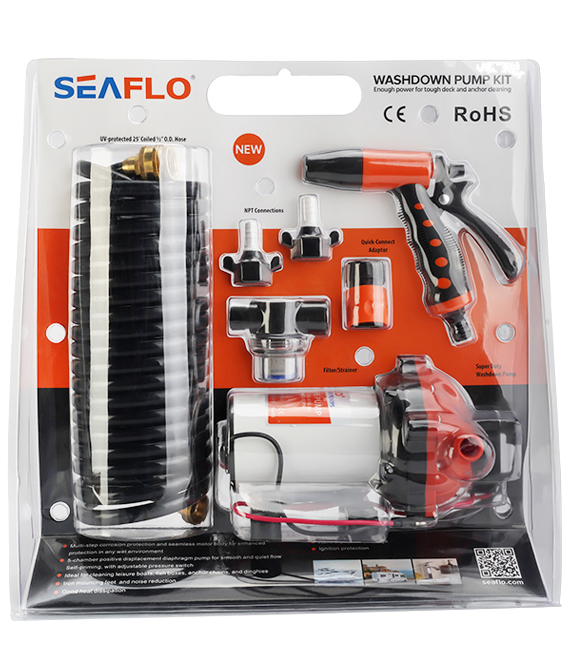

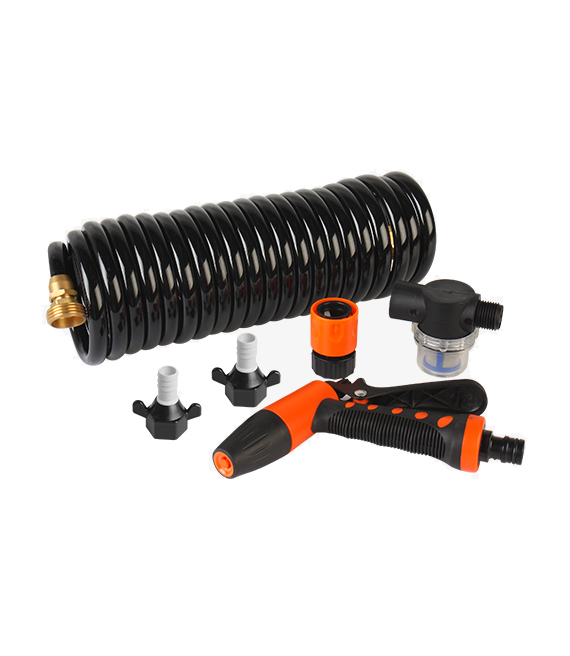

Washdown Pump Kit ，Washdown Deck Wash Pump KIT ，car wash kit
Our heavy-duty washdown kit. The best choice for cleaning boats, fish boxes, anchor wells, dinghies, and other similar applications. This pump boasts a huge 5 GPM capacity. This pump has an on-demand switch, so the pump automatically turns on when you squeeze the spray?gun handle. With 70 PSI cutoff, this has the pressure to get rid of stubborn debris. Suitable for fresh and saltwater applications.
MORE FEATURES & BENEFITS

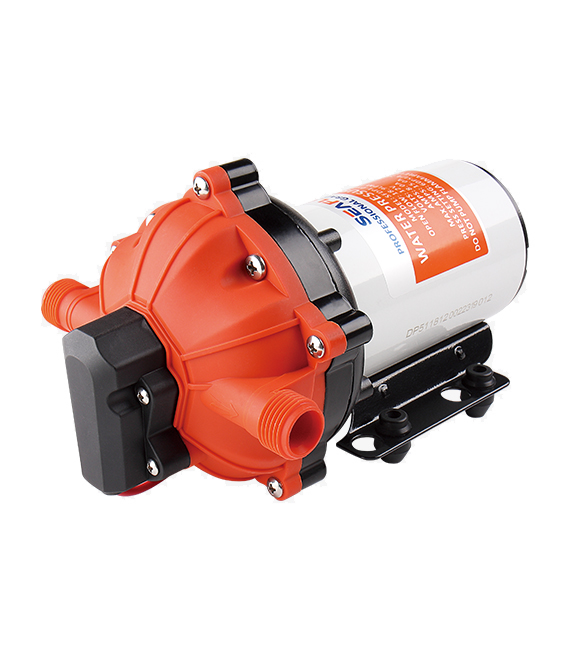

• Positive displacement pump
• Can run dry
• Quiet operation
• emand pump
• Easy connect fittings
• Ignition protected
• Industry standard mount pattern
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow （GPM/LPM） | Max Draw | Shut-off Pressure （PSI/BAR) |
| SFWP1-050-070-51 NEW | 12V | 5.0 / 18.9 | 17.0A | 70 / 4.8 |
| SFWP2-050-070-51 NEW | 24V | 5.0 / 18.9 | 10.0A | 70 / 4.8 |
| SFWP1-055-070-51 NEW | 12V | 5.5 / 20.0 | 17.0A | 70 / 4.8 |
| SFWP2-055-070-51 NEW | 24V | 5.5 / 20.0 | 10.0A | 70 / 4.8 |
5.0GPM
| PRESSURE | FLOW | CURRENT | ||
| PSI | BAR | GPM | LPM | AMPS |
| 0 | 0 | 4.91 | 18.60 | 6 |
| 20 | 1.38 | 3.75 | 14.20 | 9.8 |
| 30 | 2.07 | 3.43 | 13.00 | 11.17 |
| 40 | 2.72 | 3.12 | 11.80 | 12.4 |
| 50 | 3.45 | 2.85 | 10.80 | 13.5 |
| 60 | 4.14 | 0 | 0 | 14.5 |
SHIPPING INFORMATION
Unit Weight | 7.58 lbs（3.44 kg） |
Selling Unit Size (L x W x H) | 16.93" x 11.42" x 5.71" （43 x 29 x 14.5 cm） |
Selling Unit Weight | 8.42 lbs（3.82 kg） |
Master Carton Size (L x W x H) | 25.2 " x 11.02 " x12.52 " (64 x 28 x 31.8 cm) |
Master Carton Qty | 4 pcs |
Master Carton Weight | 35.27 lbs (16 kg) |
Master Carton Volume | 0.057 m³ |
