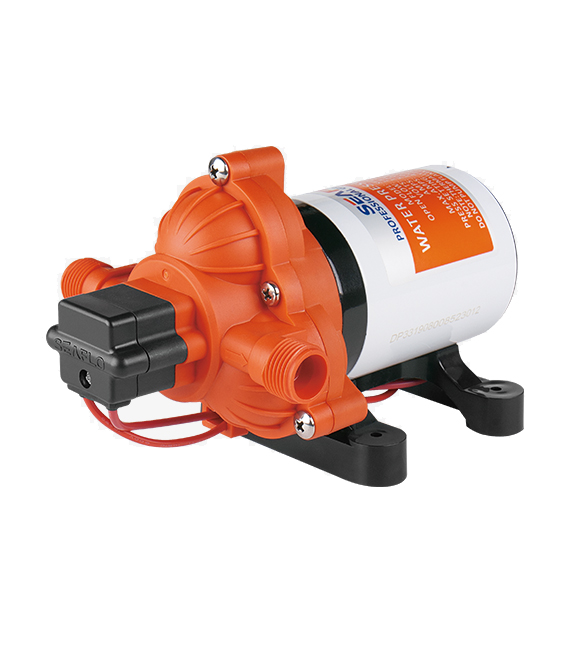

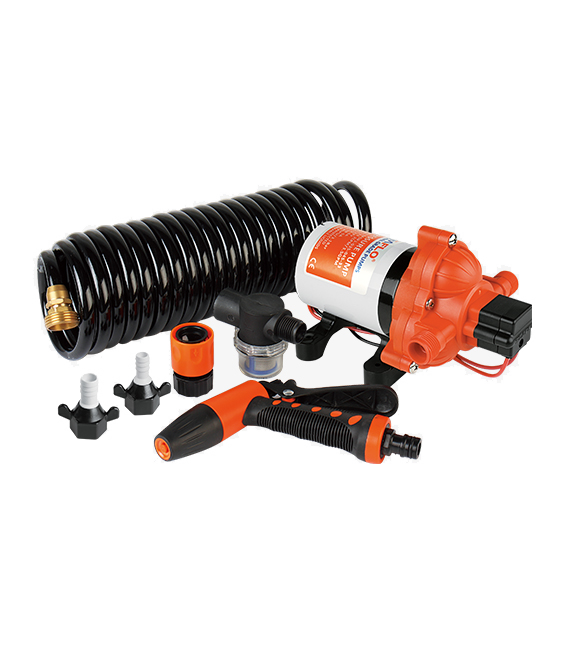

Washdown Pump Kit ，Washdown Deck Wash Pump KIT ，car wash kit
Our general washdown kit. An awesome choice for cleaning boats, fish boxes, anchor wells, dinghies, and other similar applications. This pump boasts a large 3.0 GPM capacity. This pump has an on-demand switch, so the pump automatically turns on when you squeeze the spray gun handle. Suitable for fresh and saltwater applications.
MORE FEATURES & BENEFITS
• Positive displacement pump
• Can run dry
• Quiet operation
• Demand pump
• Easy connect fittings
• Ignition protected
• Industry standard mount pattern
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow （GPM/LPM） | Max Draw | Shut-off Pressure （PSI/BAR) |
| SFWP1-030-070-33 | 12V | 3.0 / 11.3 | 18.0A | 70 / 4.8 |
| SFWP2-030-070-33 | 24V | 3.0 / 11.3 | 9.0A | 70 / 4.8 |
3.0 GPM
| PRESSURE | FLOW | CURRENT | ||
| PSI | BAR | GPM | LPM | AMPS |
| 0 | 0 | 2.78 | 10.54 | 4.24 |
| 10 | 0.69 | 2.41 | 9.12 | 5.01 |
| 20 | 1.38 | 2.06 | 7.80 | 5.95 |
| 30 | 2.07 | 1.69 | 6.40 | 6.43 |
| 40 | 2.72 | 1.37 | 5.20 | 6.69 |
| 45 | 3.11 | 0 | 0 | 6.74 |
SHIPPING INFORMATION
Unit Weight | 6.75 lbs（3.06 kg） |
Selling Unit Size (L x W x H) | 12.01" x 10.04" x 5.71" （30.5 x 25.5 x14.5 cm） |
Selling Unit Weight | 7.85 lbs（3.56 kg） |
Master Carton Size (L x W x H) | 21.06 " x 12.8 " x 12.6 " (53.5 x 32.5 x 32 cm) |
Master Carton Qty | 4 pcs |
Master Carton Weight | 28.22 lbs (12.8 kg) |
Master Carton Volume | 0.056 m³ |
