electric submersible pump, deep well submersible pump , 12v dc submersible water pump
Voltage：12V / 24V
Flow Rate：1600 GPH
Outlet Dia：1-1/8" and 1/2 "NPT
Application Scenarios：Drainage of accumulated water
Exclusive moisture tight seals, 1600 GPH of pumping power, dual port capability, long-life motor, stainless steel shaft, quiet running design, 1" NPT female intake.

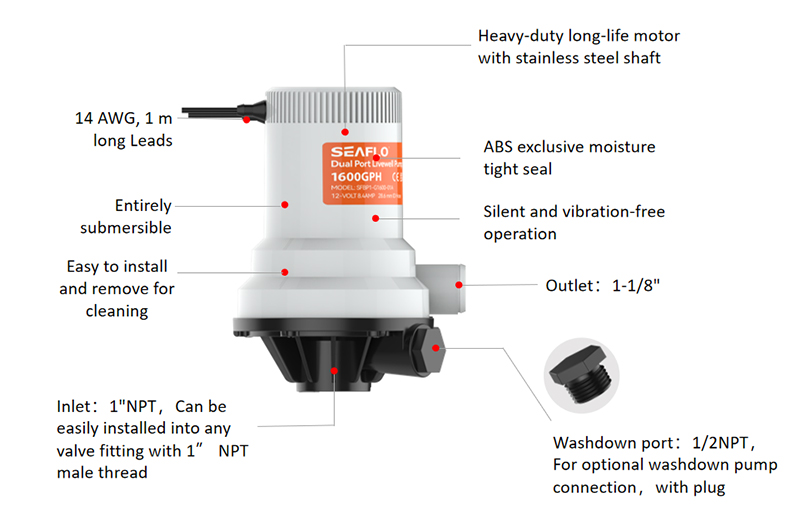

MORE FEATURES & BENEFITS
• Silent and vibration-free operation；
• Dual port base design for easy customer selection；
• Exclusive moisture seal；
• Ignition protection；
• Stainless steel shaft；
• 110°F (43°C) maximum temperature；
• 1600 GPH (6054 LPH) dual port, 12V/24VDC；
• Anti-airlock feature, heavy-duty long-life motor；
• Entirely submersible；
• Easy to install and remove for cleaning；
• Can be easily installed into any valve fitting with 1” NPT male thread；
STANDARD PUMP CONFIGURATIONS
| Model | Flow Rate | Voltage | Max Draw | Head | Inlet Port | Outlet Port |
| SFBP1-G1600-01A | 1600GPH | 12V | 8.4A | 4.2m | 1"NPT/31mm | 1-1/8" and 1/2 "NPT |
| SFBP2-G1600-01A | 1600GPH | 24V | 4.2A | 4.2m | 1"NPT/31mm | 1-1/8" and 1/2 "NPT |
SHIPPING INFORMATION
Unit Weight | |
Selling Unit Size (L x W x H) | |
Selling Unit Weight | |
Master Carton Size (L x W x H) | |
Master Carton Qty | |
Master Carton Weight | |
Master Carton Volume |
