Irigation water pump,solar water pump,submersible well pump
Voltage：12V / 24V
Outlet Dia：50 mesh stainless steel filter /1/2* (12.7mm) barb
Application Scenarios：Typical applications are in livestock watering, irrigation, ponds, islands, remote homes and cabins.

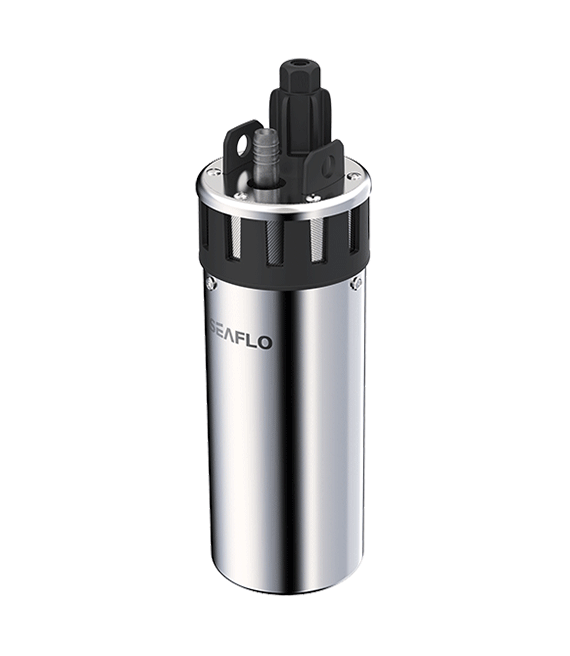

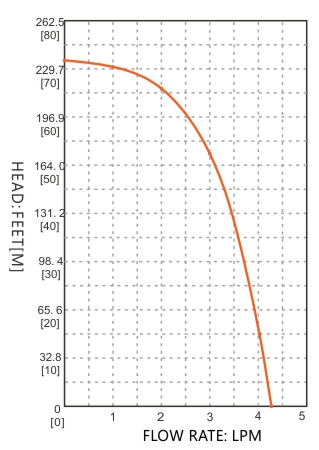

The SEAFLO submersible solar deep well pump is a positive displacement diaphragm type 24VDC pump of high efficiency. The pump offers a solution to your remote water pumping needs. It’s rugged, durable and built to last. This pump delivers approximately 1.0 GPM (3.8 LPM) at 230 feet (70.1 meter) total lift. It incorporates a unique, water-blocked cable connector that is impervious to water leakage and condensation problems preventing water wicking. Typical applications are in livestock watering, irrigation, ponds, islands, remote homes and cabins.
FEATURES & BENEFITS
MORE FEATURES & BENEFITS

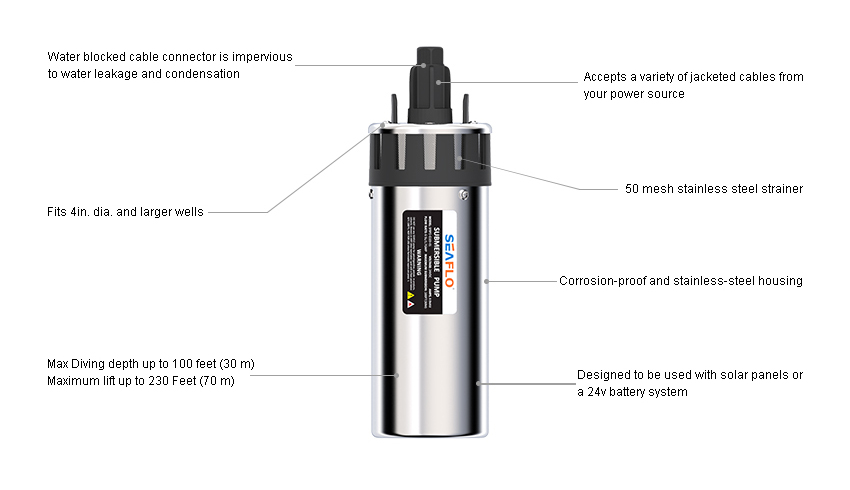

• Runs dry without damage
• Internal bypass for pump protection
• Accepts a variety of jacketed cables
• Easy hook up to most any existing solar panels or wind generator systems
• Low maintenance design/field Repairable
• Santoprene diaphragm for reliability, longer life and better priming
• Thermal overload start on 239 °F(115° C), automatic restart
• CE and RoHS approved
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Max Draw | Fuse | Max Diving depth | Max Lift | Inlet/outlet | Open flow |
| SFBP1-G103-01 | 12 V | 3.0 A | 4.0 A | 100 feet(30m) | 230 feet(70m) | 50 mesh stainless steel filter /1/2* (12.7mm) barb | 6.5LPM±5% |
| SFBP2-G103-01 | 24 V | 6.0 A | 8.0 A | 100 feet(30m) | 230 feet(70m) | 50 mesh stainless steel filter /1/2* (12.7mm) barb | 6.5LPM±5% |
SHIPPING INFORMATION
Unit Pump Weight | 8.16 lbs（3.70 kg） |
Selling Unit Size (L x W x H) | 12.72"x5.71 "x 5.32" (32.3*14.5*13.5cm） |
Selling Unit Weight | 9.48 lbs（4.3kg） |
Master Carton Size (L x W x H) | 13.43"x 12.60 "x 12.01" (34.1*32*30.5 cm) |
Master Carton Qty | 4 pcs |
Master Carton Weight | 41.89 lbs (19 kg) |
