21A Series DC Diaphragm Pump

food grade pump,drink water pump,12v dc pump,low pressure pump

Voltage:12V/24V

Open Flow:3.0GPM / 0.8LPM

Shut-off Pressure:40PSI / 2.8BAR

Material:EPDM(Valves) / Santoprene(Diaphragm)

Ports:O-ring

Application Scenarios:food & beverage

Request quotation

FEATURES & BENEFITS


MORE FEATURES & BENEFITS

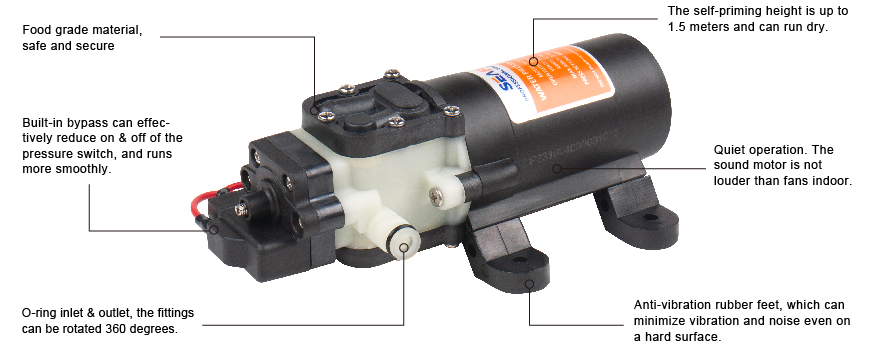

•  Adjustable pressure switch from 17-80psi for OEM when needed.

•  Quite operation. Motor sounds not louder than your room fan running.

•  Hose connections with multiple fittings allow connection to any outlet.

•  Rubber feet for noise reduction for vibration.

•  Compact design and heavy-duty demand switch.

•  Can run dry.


STANDARD PUMP CONFIGURATIONS

ModelVoltage

Open Flow
(GPM/LPM)

Control Type

Max Draw

Shut-off Pressure
(PSI/BAR)

ValvesDiaphragmPorts

Wire Connections

SFDP1-008-040-21A12V3.0 / 0.8Switch3.5A40 / 2.8EPDMSantopreneO-ring2-Pin/Leads
SFDP2-008-040-21A24V3.0 / 0.8Switch2.0A40 / 2.8EPDMSantopreneO-ring2-Pin/Leads

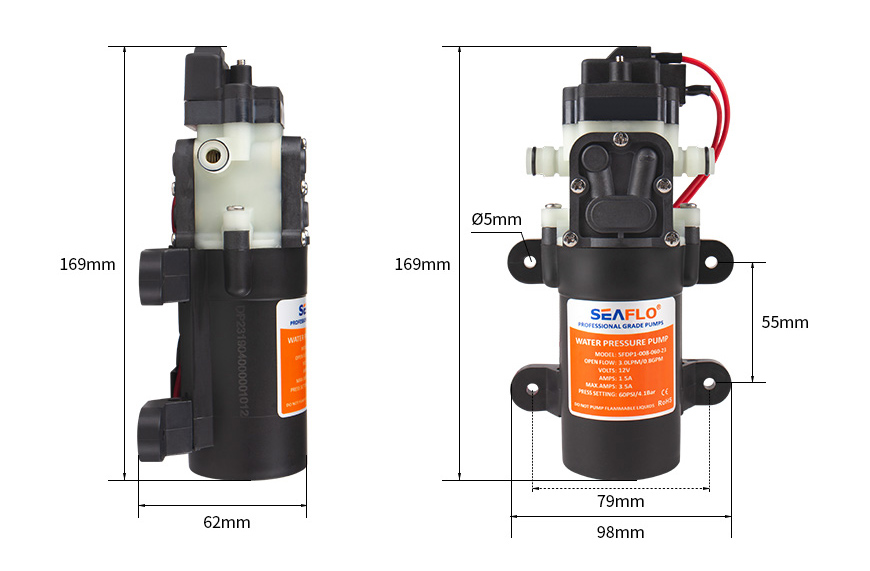

21A SIZE.jpg
