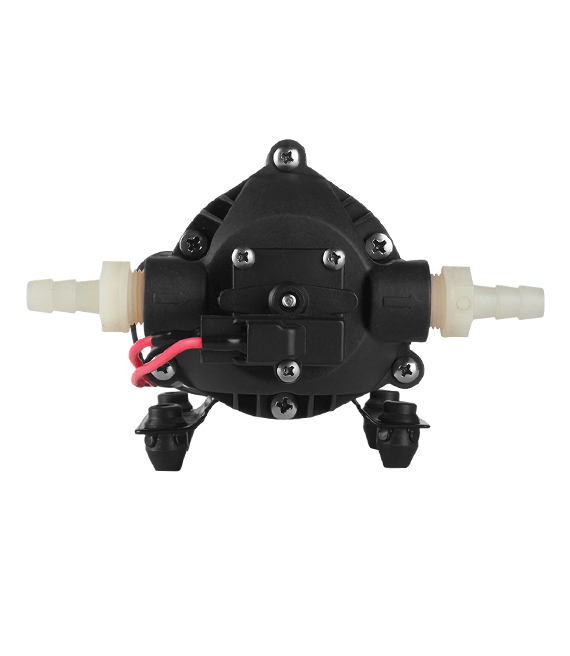

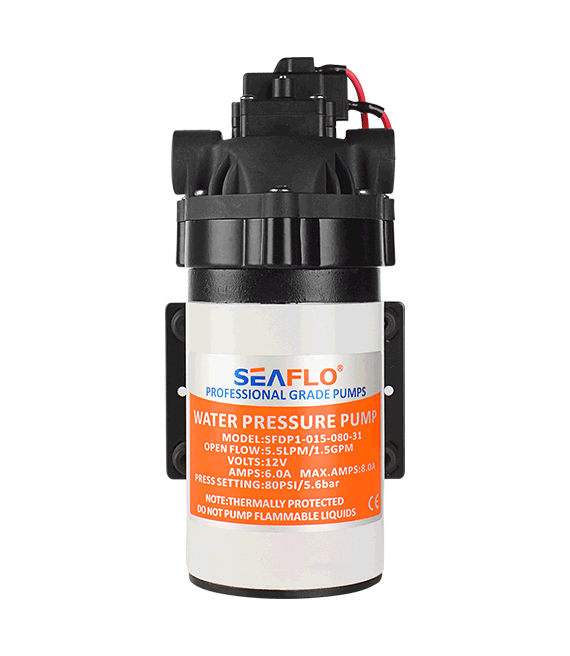

31 Series DC Diaphragm Pump

diaphragm pump,12v water pump ,washdown pump

Voltage:12V/24V

Open Flow:1.5-1.8GPM / 5.5-7.0LPM

Shut-off Pressure:80PSI / 5.5BAR

Priming Capabilities:6 feet (1.8 m) suction lift

Max Recommended Temperature:140° F (60° C)Max.

Material:EPDM(Valves) / Santoprene(Diaphragm)

Ports:3/8"-18 FNPT

Application Scenarios:Cleaning & sanitation, agriculture & gardens

The 31-Series is our continuous-duty on-demand positive displacement pump. It provides reliable performance in moderate water flow, high-pressure applications. This 3-chamber diaphragm pump provides up to 1.8 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage. Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the fixture is opened and closed. They are easy to install, service and winterize.

Request quotation

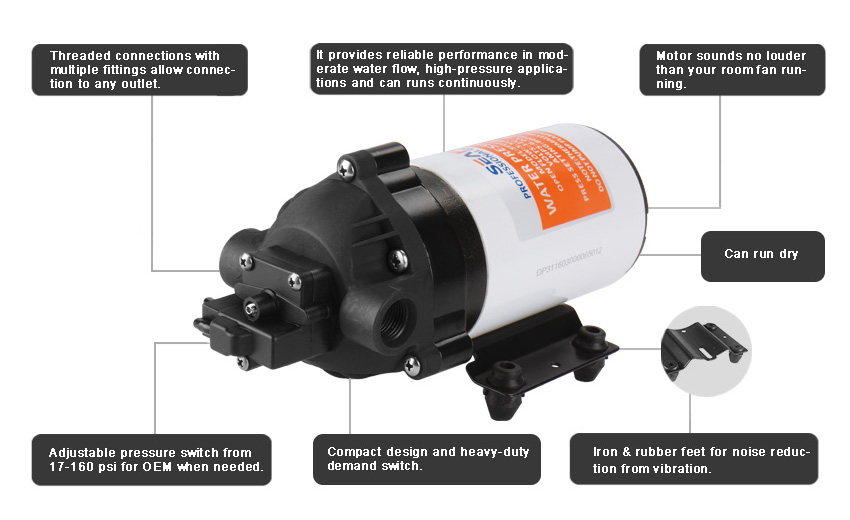

FEATURES & BENEFITS


MORE FEATURES & BENEFITS

•  Adjustable pressure switch

•  Continuous Duty & Run dry safe

•  Self priming

•  Continuous duty

•  Quiet operation

•  Industry Standard mounting pattern.

•  16AWG, 4.5" long Leads

•  2 Year Warranty

•  Meets or exceeds RoHS, SGS, and ISO standards


STANDARD PUMP CONFIGURATIONS

ModelVoltage

Open Flow
(GPM/LPM)

Max Draw

Shut-off Pressure
(PSI/BAR)

SFDP1-015-080-3112V1.5 / 5.57.080 / 5.5
SFDP2-015-080-3124V1.5 / 5.54.080 / 5.5
SFDP1-018-120-3112V1.8 / 7.012.0120 / 8.3
SFDP2-018-120-3124V1.8 / 7.06.0120 / 8.3
SFDPA1-010-060-31110V1.0 / 3.81.260/4.1
SFDPA1-012-120-31110V1.2 / 4.61.4120 / 8.3
SFDPA1-014-100-31110V1.4 / 4.31.6100/6.9

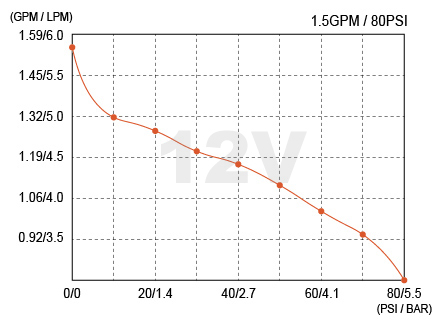

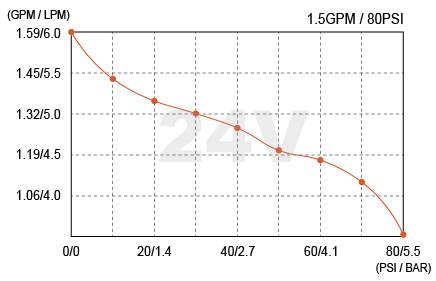

1.5GPM / 80PSI

PRESSURE

12V

24V

FLOW

CURRENT

FLOW

CURRENT

PSI

BAR

GPM

LPM

AMPS

GPM

LPM

AMPS

0

0

1.53

5.80

2.74

1.59

6.00

1.53

10

0.69

1.32

5.00

3.75

1.43

5.40

2.15

20

1.38

1.27

4.80

4.56

1.37

5.20

2.40

30

2.07

1.22

4.60

5.20

1.32

5.00

2.63

40

2.76

1.16

4.40

5.78

1.27

4.80

2.98

50

3.45

1.11

4.20

6.32

1.22

4.60

3.26

60

4.14

1.00

3.80

6.63

1.16

4.40

3.61

70

4.83

0.95

3.60

7.11

1.11

4.20

3.85

80

5.52

0

0

7.55

0

0

4.06

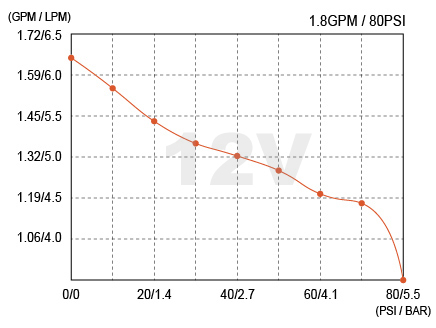

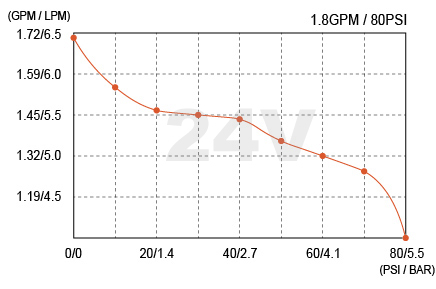

1.8GPM / 80PSI

PRESSURE

12V

24V

FLOW

CURRENT

FLOW

CURRENT

PSI

BAR

GPM

LPM

AMPS

GPM

LPM

AMPS

001.646.202.681.696.401.58
100.691.535.804.221.535.802.24
201.381.435.405.041.485.602.60
302.071.375.205.791.455.503.00
402.761.325.006.671.435.403.38
503.451.274.807.371.375.203.64
604.141.224.608.001.325.003.91
704.831.164.408.601.274.804.24
805.52009.17004.50



SHIPPING INFORMATION

Unit Weight

5.05 lbs (2.29 kg)

Selling Unit Size (L x W x H)

11.42" x 4.61" x 4.72"

(29.0 x 11.7 x 12 cm)

Selling Unit Weight

5.14 lbs (2.33 kg)

Master Carton Size (L x W x H)

19.68" x 12.20" x 10.63"

(50 x 31 x 27 cm)

Master Carton Qty

8 pcs

Master Carton Weight

45.19 lbs (20.5 kg)

Master Carton Qty

0.042 m³
