micro high pressure water pump, electric drinking water pump, food grade transfer pump
Voltage：12V/24V
Open Flow：0.5-1.5GPM / 1.9-5.6LPM
Shut-off Pressure：40-70PSI / 2.8-4.8BAR
Priming Capabilities：2.4 feet (0.8 m) suction lift
Max Recommended Temperature：140° F (60° C）Max.
Material：EPDM(Valves) / Santoprene(Diaphragm)
Ports：5/8" quick attach
Application Scenarios：Food & beverage
SEAFLO 23 Series diaphragm pump is design for wider applications of liquid transfer, pressurization and circulation. 23 Series is compact design but flow rate is up to 1.5GPM (5.6LPM), and pressure is up to 120PSI (8.2Bar). 23 Series supports flexible customization. Firstly its control type can choose from demand, by pass, no switch, manual switch and any combination of these types. Secondly, with compatible fixtures, 23 series can easy connect to any industrial port. Thirdly, 23 series can be customized to use for water, chemicals and food grade.

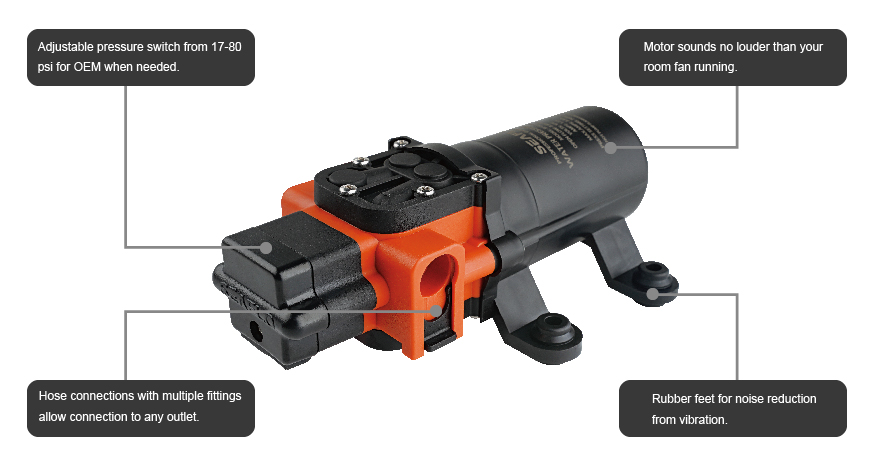

FEATURES & BENEFITS
MORE FEATURES & BENEFITS
• Continuous duty
• Can run dry
• Self-Priming
• Quite operation
• Long Life Pressure Switch
• Waterproof grade IPX54
• Multiple ports available
• On-demand pressure switch
• Adjustable pressure setting
• Capable of supplying 1-2 fixtures
• By pass technology reduces cycling

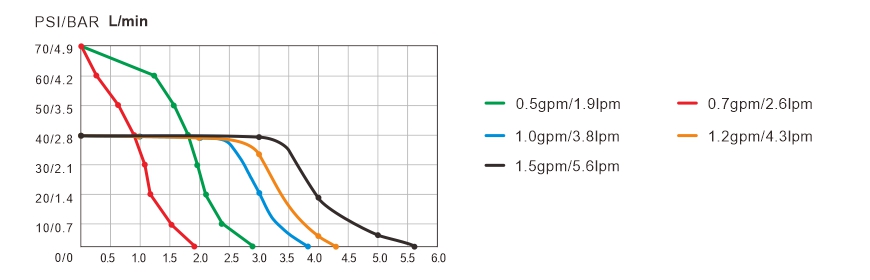

STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Max Draw | Shut-off Pressure |
| SFDP1-005-070-23C | 12V | 0.5/1.9 | 1.8A | 70/4.8 |
| SFDP2-005-070-23C | 24V | 0.5/1.9 | 1.0A | 70/4.8 |
| SFDP1-007-070-23C | 12V | 0.7/2.6 | 2.5A | 70/4.8 |
| SFDP2-007-070-23C | 24V | 0.7/2.6 | 1.2A | 70/4.8 |
| SFDP1-010-040-23C | 12V | 1.0/3.8 | 3.8A | 40/2.8 |
| SFDP2-010-040-23C | 24V | 1.0/3.8 | 2.0A | 40/2.8 |
| SFDP1-012-040-23C | 12V | 1.2/4.3 | 4.2A | 40/2.8 |
| SFDP2-012-040-23C | 24V | 1.2/4.3 | 2.2A | 40/2.8 |
| SFDP1-015-040-23C | 12V | 1.5/5.6 | 4.5A | 40/2.8 |
| SFDP2-015-040-23C | 24V | 1.5/5.6 | 2.5A | 40/2.8 |
SHIPPING INFORMATION
Unit Weight | 1.32 lbs（0.6 kg） |
Selling Unit Size (L x W x H) | 7.09"x 4.13 "x 2.76" （18.0 x 10.5 x 7 cm） |
Selling Unit Weight | 1.54 lbs（0.7 kg） |
Master Carton Size (L x W x H) | 15.16"x 13.19 "x 14.96" （38.5 x 33.5 x 38 cm） |
Master Carton Qty | 30 pcs |
Master Carton Weight | 45.19 lbs（20.5 kg） |
Master Carton Volume | 0.049 m³ |

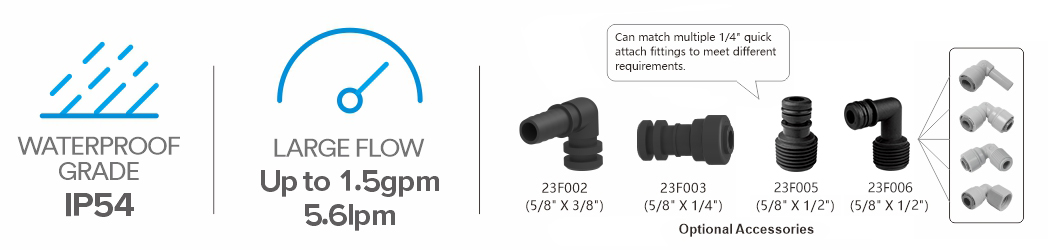

23F001*2
