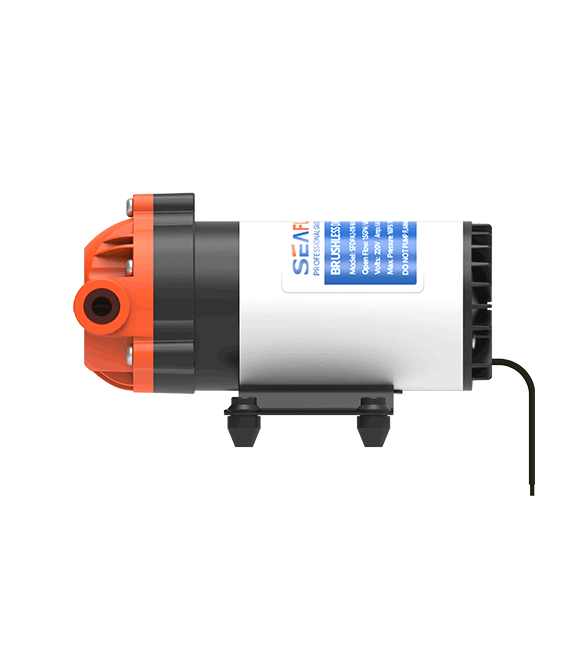

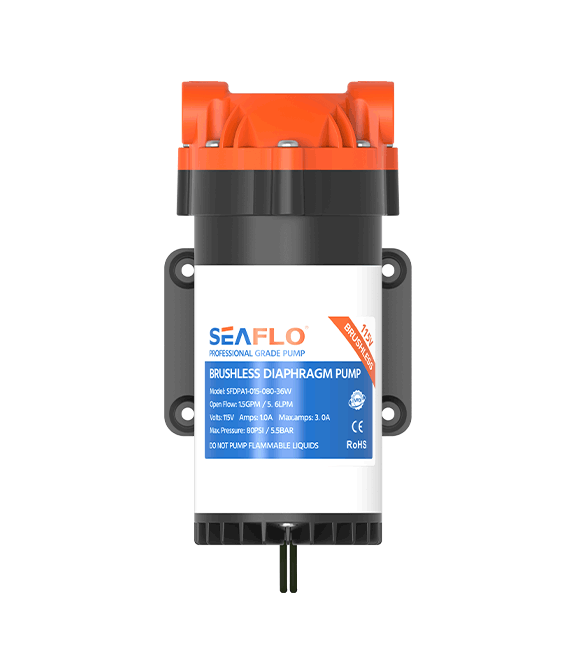

brushless 12v water pump，micro brushless pump，diaphragm pump brushless
Voltage：12V/24V/115V/220V
Open Flow：1.5-1.8GPM / 5.6-6.8LPM
Shut-off Pressure：120-180PSI / 8.3-12.4BAR
Priming Capabilities：6 feet (1.8 m) suction lift
Max Recommended Temperature：140° F (60° C）Max.
Material：EPDM(Valves) / Santoprene(Diaphragm)
Ports：3/8"-18 FNPT
Application Scenarios：Cleaning & sanitation

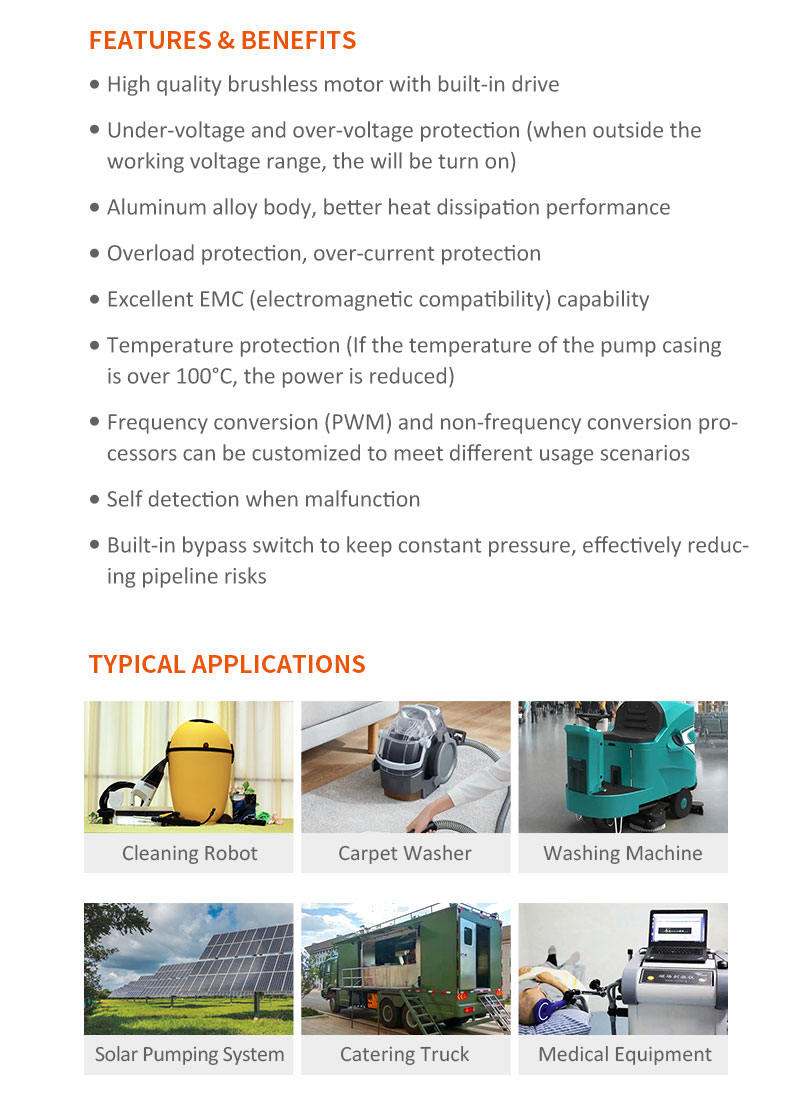

The biggest update of 36W Series diaphragm pump is using brushless technology, which can provide longer service life. The feature of fast heat dissipation ensures the pump can continuous work. It provides up to 1.8GPM and 180PSI pressure, 6 vertical feet self-priming, and run dry ability. It also features protection system, such as over load, over or less voltage, thermal, blocked rotor protection. The pump built-in bypass switch to keep constant pressure, effectively reducing pipeline risks. It is easy operation and easy drainage and antifreeze.
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Voltage range | Open Flow | Max Draw | Shut-off Pressure |
SFDP1-015-120-36W | 12V | 8.4V~15.6V | 1.5 / 5.6 | 10.0 | 120 / 8.2 |
SFDP2-015-160-36W | 24V | 16.8V~31.2V | 1.5 / 5.6 | 6.2 | 160 / 11.0 |
SFDP1-018-120-36W | 12V | 8.4V~15.6V | 1.8 / 6.8 | 10.0 | 120 / 8.2 |
SFDP2-018-160-36W | 24V | 16.8V~31.2V | 1.8 / 6.8 | 6.8 | 160 / 11.0 |
SFDPA1-015-180-36W | 115V | 90V~140V（AC） | 1.5 / 5.6 | 2.7 | 180 / 12.4 |
SFDPA2-015-180-36W | 230V | 180V~250V（AC） | 1.5 / 5.6 | 1.35 | 180 / 12.4 |
SFDPA1-018-180-36W | 115V | 90V~140V（AC） | 1.8 / 6.8 | 2.8 | 180 / 12.4 |
SFDPA2-018-180-36W | 230V | 180V~250V（AC） | 1.8 / 6.8 | 1.4 | 180 / 12.4 |
SHIPPING INFORMATION
Unit Weight | 4.94 lbs（2.24 kg） |
Selling Unit Size (L x W x H) | 11.34" x 4.65" x 4.8" （28.8 x 11.8 x 12.2 cm） |
Selling Unit Weight | 5.62 lbs（2.55 kg） |
Master Carton Size (L x W x H) | 19.68" x 12.20" x 10.63" （50 x 31 x 27 cm） |
Master Carton Qty | 8 pcs |
Master Carton Weight | 45.19 lbs（20.5 kg） |
Master Carton Volume | 0.042 m³ |
