portable diesel water pump,electric diesel fuel pump, vertical pump
Voltage:12V
Flow Rate:280GPH
Outlet Dia:1/2" (12mm)
Application Scenarios:liquid transfer
SEAFLO 12v 280GPH inline submersible and inline pump is easy to install and carry. Also, the pump is able to pump seawater and diesel. With long life and quiet perform motor, allows it to work in an quiet environment. The food grade material allows it to work with wide range of application.

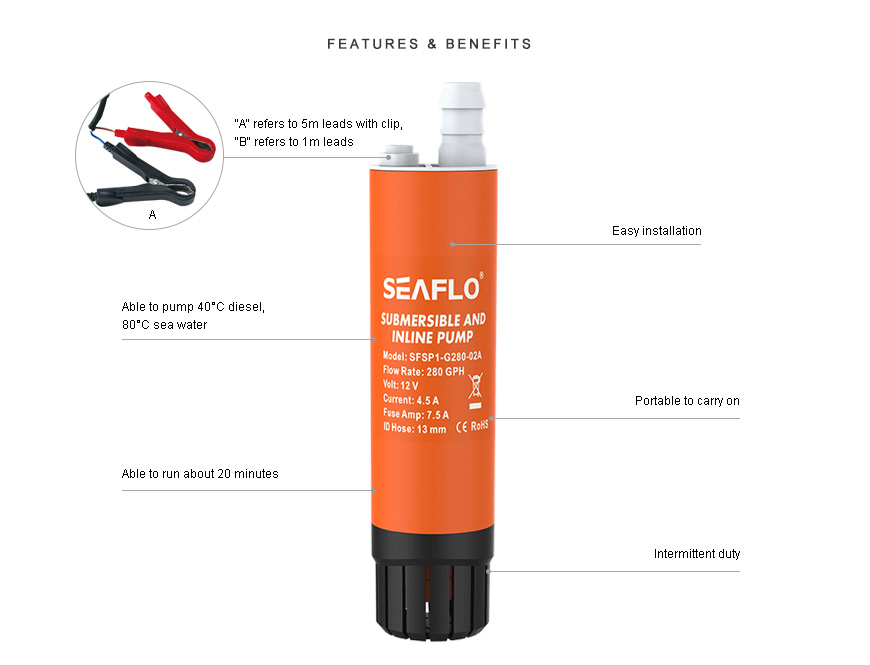

MORE FEATURES & BENEFITS
• Able to pump 40°C diesel, 80°C sea water
• Able to run about 20 minutes
• Portable to carry on
• Easy installation
• Intermittent duty
• “A” refers to 5m leads with clip, “B” refers to 1m leads
STANDARD PUMP CONFIGURATIONS
Model | Voltage | Current | Max Draw | Head | Wire Lead |
SFSP1-G280-02A | 12 V | 4.0 A | 7.5 A | 19.7' (6 m) | 16' (5 m) |
SFSP2-G280-02B | 24 V | 4.4 A | 7.5 A | 19.7' (6 m) | 3' (1 m) |
SFSP-G280-02A
12V | ||
Current(A) | Flow(GPH) | Head(M) |
4 | 266 | 0 |
4.62 | 226 | 1 |
5.28 | 175 | 2 |
5.88 | 133 | 3 |
6.45 | 108 | 4 |
6.86 | 66 | 5 |
7.5 | 0 | 6 |

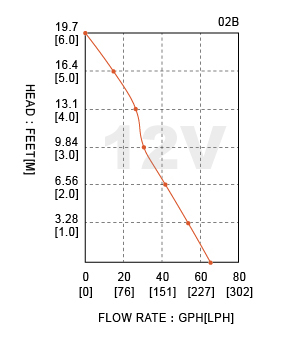

SFSP-G280-02B
12V | ||
Current(A) | Flow(GPH) | Head(M) |
4.4 | 248 | 0 |
4.86 | 201 | 1 |
5.23 | 155 | 2 |
5.86 | 123 | 3 |
6.35 | 96 | 4 |
7.02 | 52 | 5 |
7.5 | 0 | 6 |
SHIPPING INFORMATION
SFSP-G280-02A
Unit Weight | 1.19 lbs(0.54 kg) |
Selling Unit Size (L x W x H) | 11.42 x 8.27 x 0.28" (29 x 21 x 0.7 cm) |
Selling Unit Weight | 1.39 lbs(0.63 kg) |
Master Carton Size (L x W x H) | 25.91" x 15.43 "x 12.6" (65.8 x 39.2 x 32 cm) |
Master Carton Qty | 15 pcs |
Master Carton Weight | 26.01 lbs (11.8 kg) |
Master Carton Volume | 0.083 m³ |
SFSP-G280-02B
Unit Weight | 1.19 lbs(0.54 kg) |
Selling Unit Size (L x W x H) | 11.42 x 8.27 x 0.28" (29 x 21 x 0.7 cm) |
Selling Unit Weight | 1.39 lbs(0.63 kg) |
Master Carton Size (L x W x H) | 20.67" x 11.81 "x 10.43" (52.5 x 30 x 26.5 cm) |
Master Carton Qty | 20 pcs |
Master Carton Weight | 19.18 lbs (8.7 kg) |
Master Carton Volume | 0.042 m³ |
