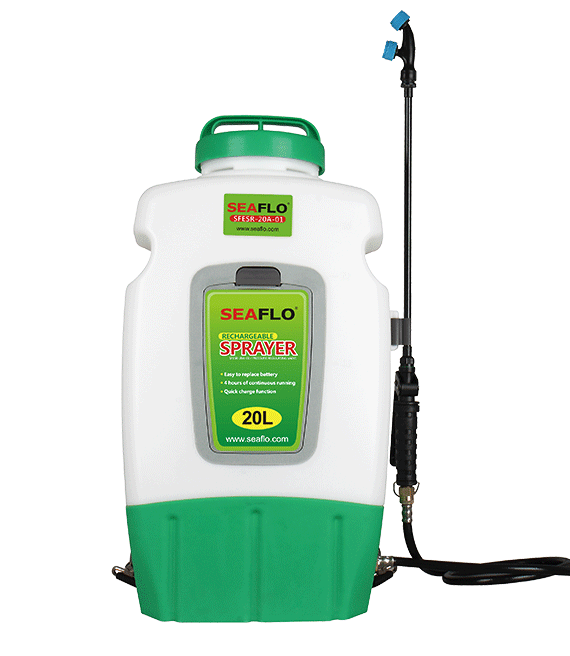

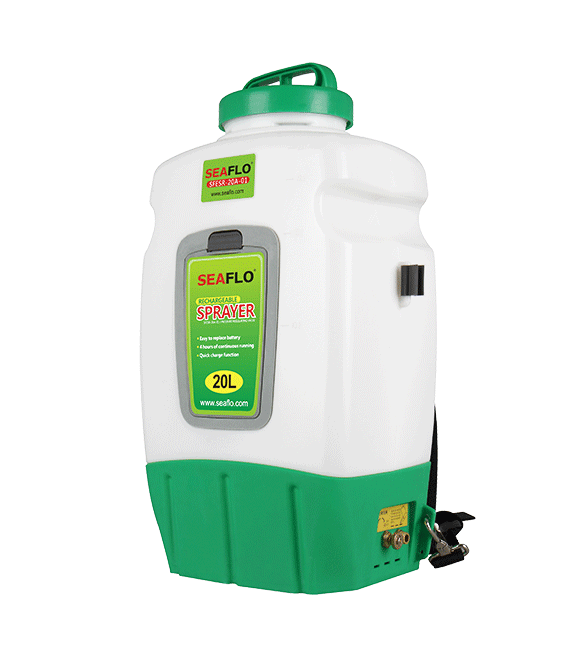

20 Liters 12 Volt Rechargeable Knapsack Sprayer

knapsack pressure sprayer , electric sprayer backpack , 12v sprayers

20 litre 12 volt rechargeable battery sprayer; wide filling neck, rugged shut-off gun, adjustable nozzle, in-built pressure filter, brass lance. The SEAFLO 12-volt knapsack sprayer is a handy and easy alternative to hand sprayers. Lance clips into the handle for storage and transports.

Request quotation

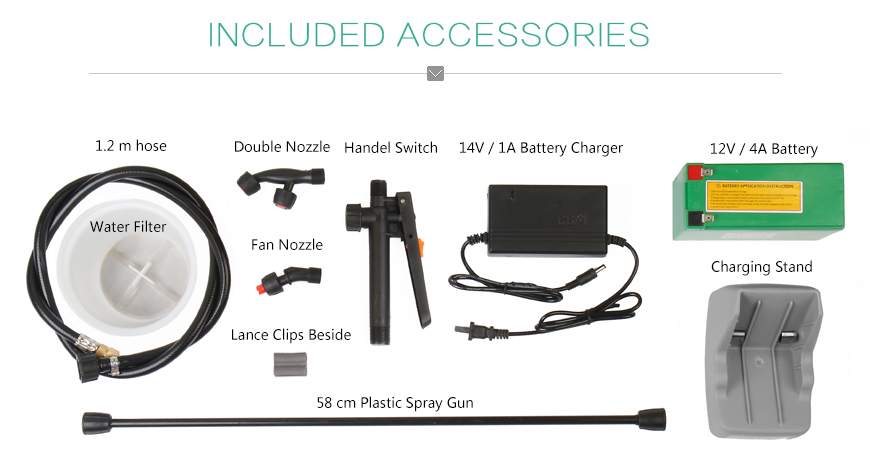

1.jpg2.jpg3.jpg4.jpgDETAILS

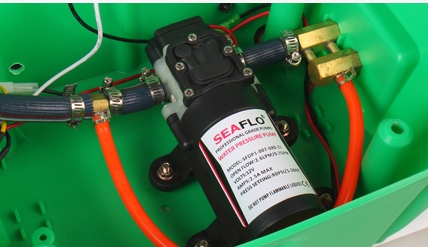

1. Automatic High-pressure Water Pump

Non-leak, high quality SEAFLO 21 series automatic diaphragm pump with maximum flow rate 2.6LPM, 70 PSI, micro switch or reflux switch and working current 1.6A- for water resistance and reliability.

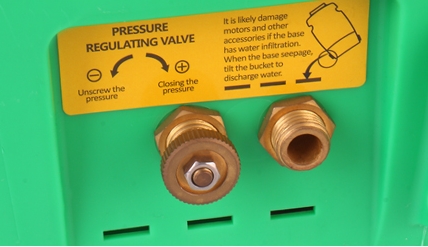

2. Pressure Regulating Valve

No mechanical failure pressure regulating valve is which works without additional energy, all copper-made, sturdy and durable.

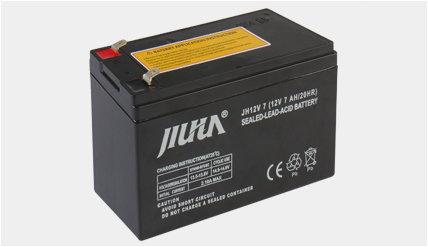

3. Battery- Energy saving and environmental protection

Low noise, no emission, Lead acid battery without maintenance, one charge less than 1 KWH, which can meet more than Six hours of work.

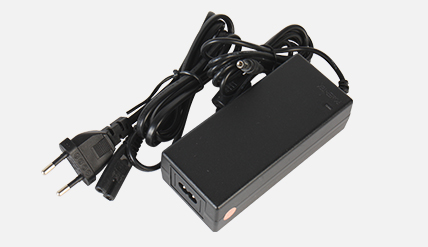

4. Battery Charger

Configure the 14V / 1A quick charger for 12V / 4A battery. It can be charged in the shortest time.

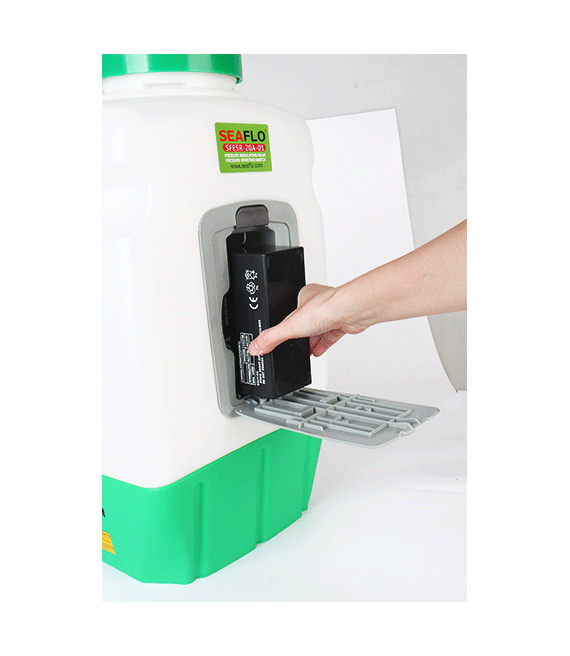

5. Battery Cover - Easy to replace the parts

One-click button to open the battery cover to replace battery in 30 seconds with no tools.

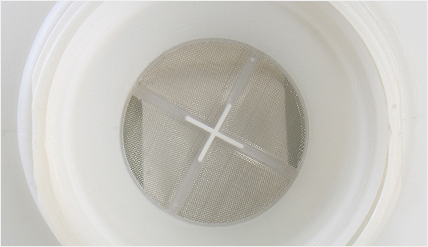

6. Water Inlet Filter

Can effectively prevent water impurities into the pump.

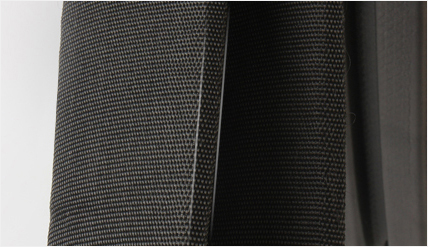

7. Back Strap

With heavy-duty padding for strength, comfort and safety.

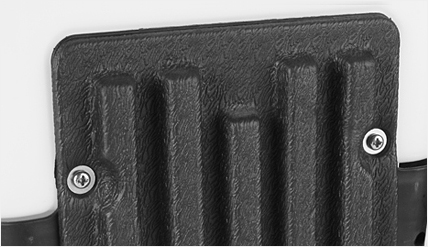

8. Back Cushion

More comfortable to carry, spray and irrigation more easily.

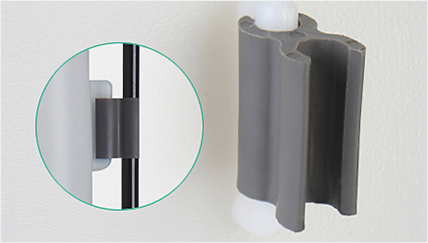

9. Lance Clips Beside

Ensures neat storage and avoids lance dragging on the ground.

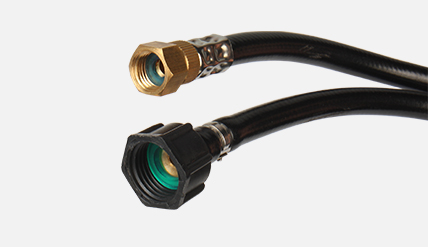

10. Water Hose - 1.2M

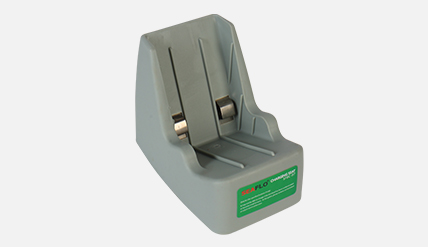

11. Efficient Charging Stand

Initiation in China,battery charging stand for take away charging allow continuously spray 220 liters (standard double nozzle) by Charging 3 hours. For longer and continuous work can replace the battery at any time.

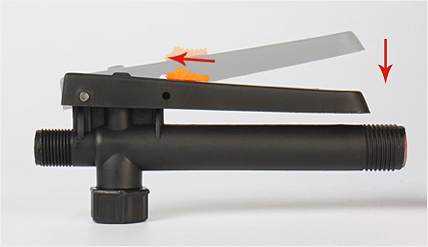

12. Handel Switch

Lock-on spray function on the spray gun with in-built pressure filter to avoid nozzle blockages.

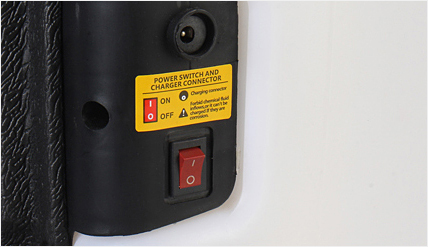

13. Simple Operation

A key to start, sensor switch, can operate without experience.






14. Compact tructure

small size, light weight, Superior ergonomic features design, flexible and comfortable in operation.

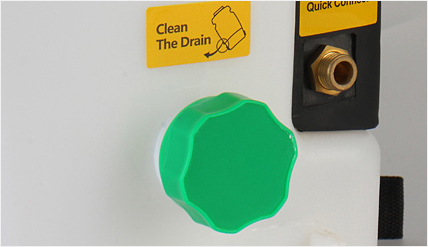

15. Easy Maintenance

After using, fill the fresh water and turn on the pump to drain. It can be stored after charge. Every 3 to 6 months need to be charged if you don’t use it for a long time.






FEATURESBENEFITS
CircuitsAll   circuits are used with quick coupling fittings can be connected and   dismantled quickly
3-stageFiltrationLarge   filling screen under lid; large suction filter; pressure filter in lance   handle
Large Filling LidHelps   prevent spillage when filling
Duty CycleIntermittent
Sprayer LanceRugged   brass lance with angled nozzle holder for perfect spray distribution at the   correct height
Adjustable Single NozzleAccording   to the different use of the environment, adjusting the spray   volume size
Fan NozzleSprinklers   can spread out the water in the middle, increase the spray range
Double NozzleIncrease   the spray range, reduce the spray time
Universal ConfigurationAdjustable   nozzle, fan nozzle, high-efficiency double nozzle are offered to meet the   needs of different crops.



SHIPPING INFORMATION

Unit  Weight

15.12 lbs (6.86 kg)

Selling Unit Size (L x W x H)

13.27” x 10.51” x 24.13”

(33.7 x 26.7 x 61.3 cm)

Selling Unit Weight

17.31 lbs (7.85 kg)

Master Carton Size (L x W x H)

22.05” x 13.98” x 24.80”

(56 x 35.5 x 63.0 cm)

Master Carton Qty

2 pcs

Master Carton Weight

36.60 lbs (16.6 kg)
