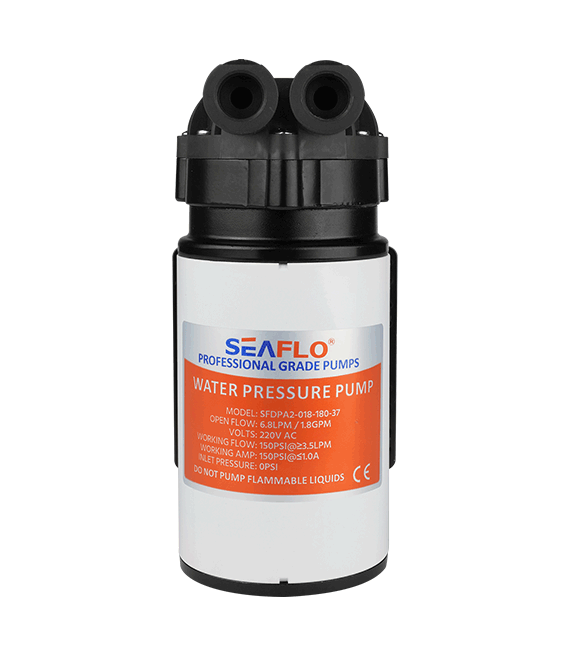

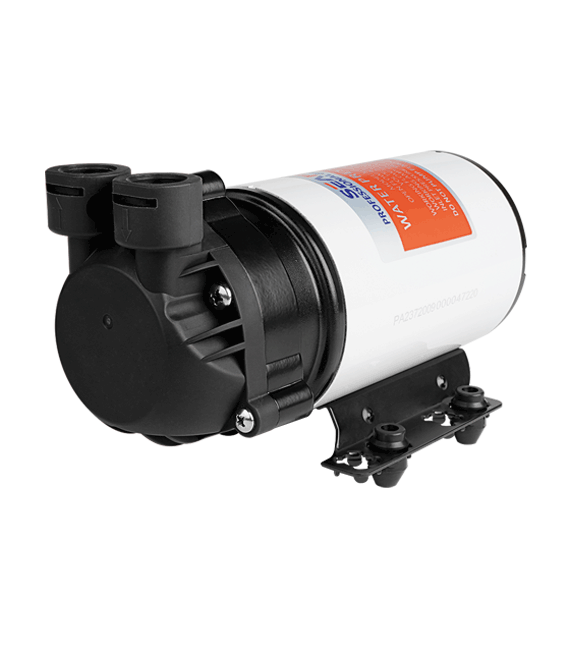

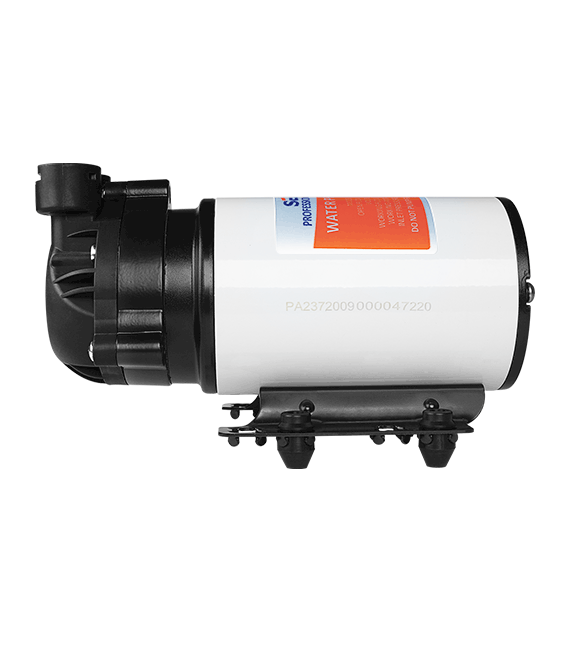

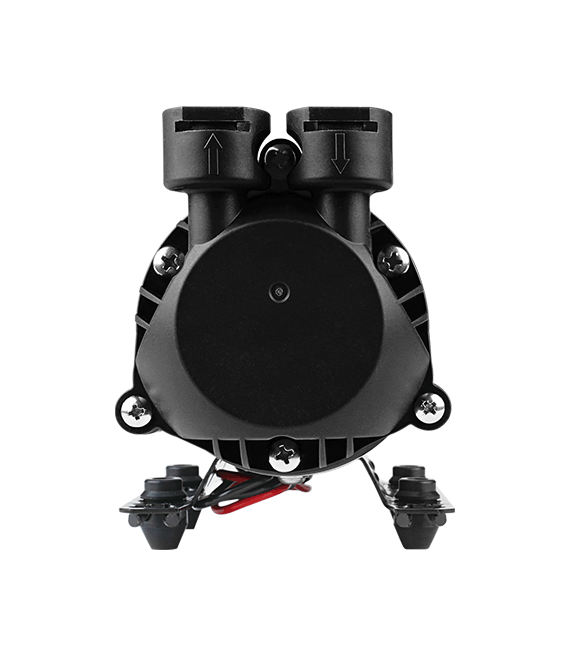

booster water pump,ac pump,self priming pump
Voltage：220V
Open Flow：6.8GPM / 1.8LPM
Material：EPDM(Valves) / Santoprene(Diaphragm)
Ports：O-ring
Application Scenarios：food & beverage

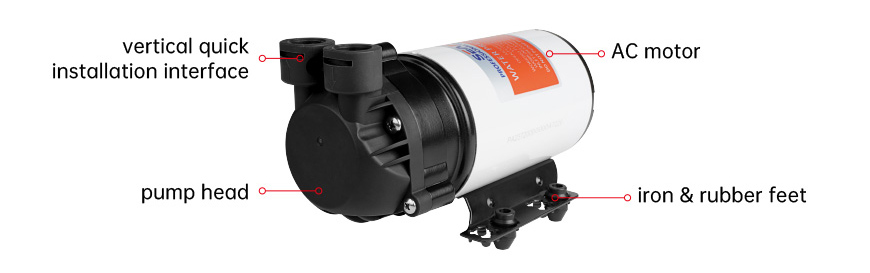

FEATURES & BENEFITS
STANDARD PUMP CONFIGURATIONS
Model | Voltage | Open Flow (GPM/LPM) | Max Amps | Shut-off Pressure (PSI/BAR) | Valves | Diaphragm | Ports | Wire Connections |
SFDP1-018-180-37 | DC 12V | 1.8 / 6.8 | 18.0 A | 180 / 12.4 | EPDM | Santoprene | 5/8" Quick Attach | 2-Leads |
SFDP2-018-180-37 | DC 24V | 1.8 / 6.8 | 9.0 A | 180 / 12.4 | EPDM | Santoprene | 5/8" Quick Attach | 2-Leads |
SFDPA2-018-180-37 | AC 220 V | 1.8 / 6.8 | 1.0 A | 180 / 12.4 | EPDM | Santoprene | 5/8" Quick Attach | 2-Leads |

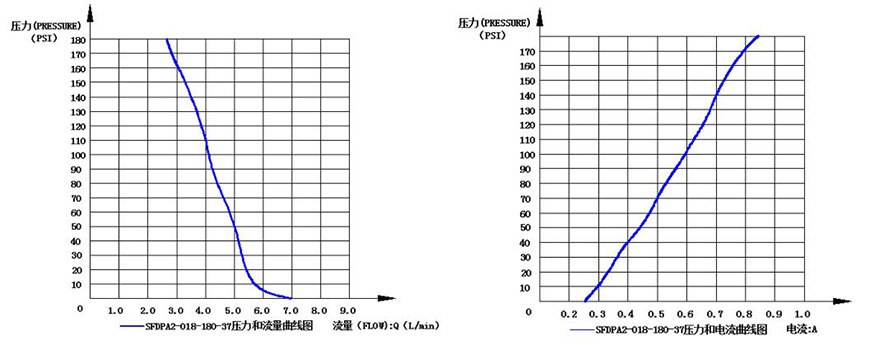

| PRESSURE | FLOW | CURRENT | ||
| PSI | BAR | GPM | LPM | APMS |
0 | 0 | 1.8 | 6.80 | 0.25 |
10 | 0.69 | 1.55 | 5.86 | 0.29 |
20 | 1.38 | 1.48 | 5.60 | 0.32 |
30 | 2.07 | 1.42 | 5.40 | 0.36 |
40 | 2.76 | 1.37 | 5.20 | 0.40 |
50 | 3.45 | 1.35 | 5.10 | 0.44 |
60 | 4.14 | 1.29 | 4.90 | 0.48 |
70 | 4.83 | 1.23 | 4.66 | 0.50 |
| 80 | 5.52 | 1.18 | 4.46 | 0.53 |
| 90 | 6.20 | 1.14 | 4.32 | 0.56 |
| 100 | 6.88 | 1.10 | 4.18 | 0.59 |
| 110 | 7.57 | 1.05 | 4.04 | 0.62 |
| 120 | 8.25 | 1.02 | 3.88 | 0.65 |
| 130 | 8.94 | 0.98 | 3.74 | 0.67 |
| 140 | 9.63 | 0.95 | 3.60 | 0.69 |
| 150 | 10.32 | 0.92 | 3.50 | 0.71 |
| 160 | 11.01 | 0.88 | 3.36 | 0.75 |
| 170 | 11.69 | 0.82 | 3.12 | 0.80 |
| 180 | 12.38 | 0.79 | 2.98 | 0.90 |
SHIPPING INFORMATION
Unit Weight | 4.94 lbs (2.24 kg) |
Selling Unit Size (L x W x H) | 11.34" x 4.65"x 4.72" （ 28.8 x 11.8 x 12 cm） |
Selling Unit Weight | 5.62 lbs (2.55 kg) |
Master Carton Size (L x W x H) | 24.02" x 11.81" x 14.57" （61 x 30 x 37 cm ） |
Master Carton Qty | 8 pcs |
Master Carton Weight | 48.50 lbs (22 kg) |
