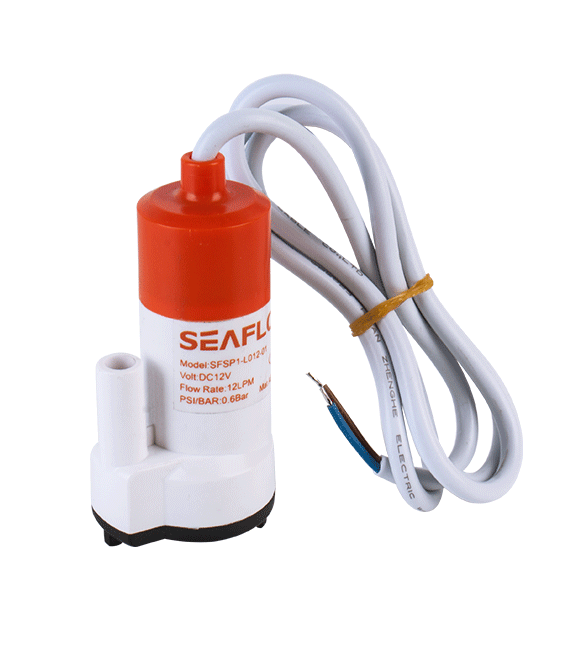

Small Submersible Pump,12V Submersible Pump,Portable Submersible Pump
Voltage:12V
Flow Rate:12 / 16 LPM
Outlet Dia:1/2" (12mm)

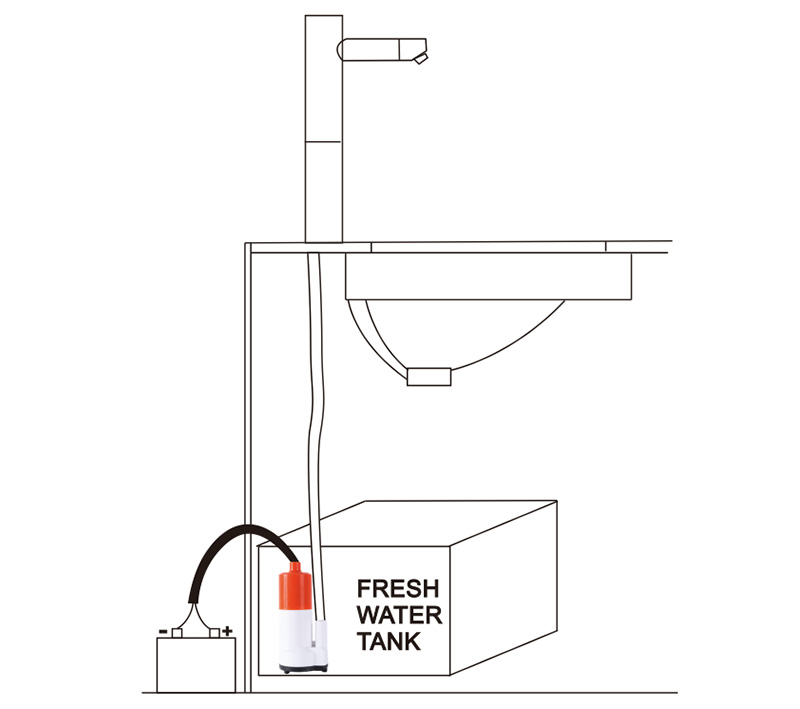

Application Scenarios:Liquid transfer, food & beverage
SEAFLO 12 voltage 4GPM submersible Pump.These pumps are true powerhouses and can also be used when you are on the move. They can offer 30 mins continous operating when connected to a suitable power unit, a car battery or a solar power system. This product use food grade material with wide range of application. Silent, vibration-free operation, dry sealed and permanently lubricated, small size, light weight, easy to install and carry.

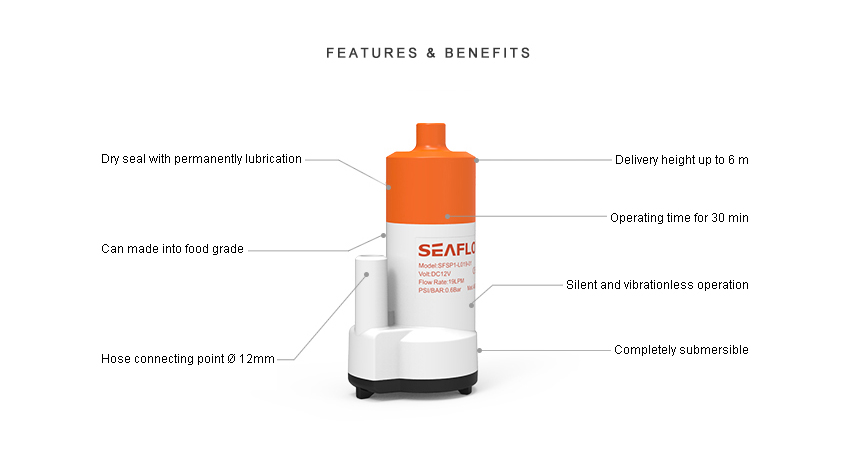

MORE FEATURES & BENEFITS
• Pumps up to 18 vertical feet
• 1/2" Outlet
• Ideal for backup battery sump
• Quiet and vibration less operation
• Completely submersible
• 18 AWG, 1 m long Leads
• Operating time for 30 min
• Dry seal with permanently lubrication
• Can made into food grade
• Delivery height up to 6m
STANDARD PUMP CONFIGURATIONS
Model | Flow Rate | Voltage | Max Draw | BRA | Wire Lead |
SFSP1-L012-01 | 12 LPM | 12 V | 2.0 A | 0.6 公斤 | 3' (1 m) |
SFSP1-L016-01 | 16 LPM | 12 V | 4.0 A | 0.6 公斤 | 3' (1 m) |

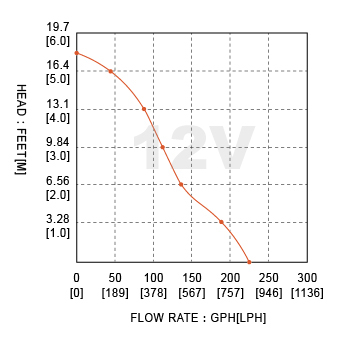

12 LPM
12V | |||
Current(A) | Flow | Head(M) | |
GPH | LPH | ||
1.6 | 166 | 628 | 0 |
1.84 | 136 | 515 | 1 |
2.13 | 112 | 424 | 2 |
2.52 | 95 | 360 | 3 |
2.79 | 52 | 197 | 4 |
3 | 0 | 0 | 4.8 |
16 LPM
12V | |||
Current(A) | Flow | Head(M) | |
GPH | LPH | ||
3.9 | 224 | 848 | 0 |
4.1 | 185 | 700 | 1 |
4.3 | 132 | 500 | 2 |
4.5 | 116 | 439 | 3 |
4.7 | 86 | 325 | 4 |
4.85 | 44 | 167 | 5 |
5 | 0 | 0 | 5.5 |
12L
16L
SHIPPING INFORMATION
12 L
Unit Weight | 0.35 lbs(0.16 kg) |
Selling Unit Size (L x W x H) | 1.89 x 1.57" x 3.78" (4.8 x 4 x 9.6 cm) |
Selling Unit Weight | 0.4 lbs(0.18 kg) |
Master Carton Size (L x W x H) | 14.96" x 14.57" x 12.99" (38 x 37 x 33 cm) |
Master Carton Qty | 90 pcs |
Master Carton Weight | 35.27 lbs (16 kg) |
Master Carton Volume | 0.044 m³ |
16 L
Unit Weight | 0.53 lbs(0.24 kg) |
Selling Unit Size (L x W x H) | 1.89" x 1.57" x 4.17" (4.8 x 4 x 10.6 cm) |
Selling Unit Weight | 0.57 lbs(0.26 kg) |
Master Carton Size (L x W x H) | 14.96" x 14.57" x 12.99" (38 x 37 x 33 cm) |
Master Carton Qty | 90 pcs |
Master Carton Weight | 35.27 lbs (16 kg) |
Master Carton Volume | 0.044 m³ |
