13B SERIES 1500/2000 GPH Electronic Sensing Automatic Submersible Pump –New Design

12v submersible pump,small submersible pump,automatic submersible pump

Voltage:12V / 24V

Flow Rate:1500/2000 GPH

Outlet Dia:1-1/8" (29mm)

Application Scenarios:Drainage of accumulated water

Motor:Cartridge Pump Replacement Motors(sold separately)

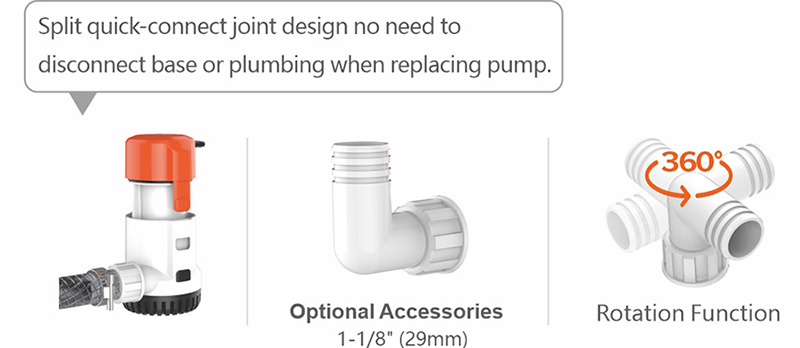

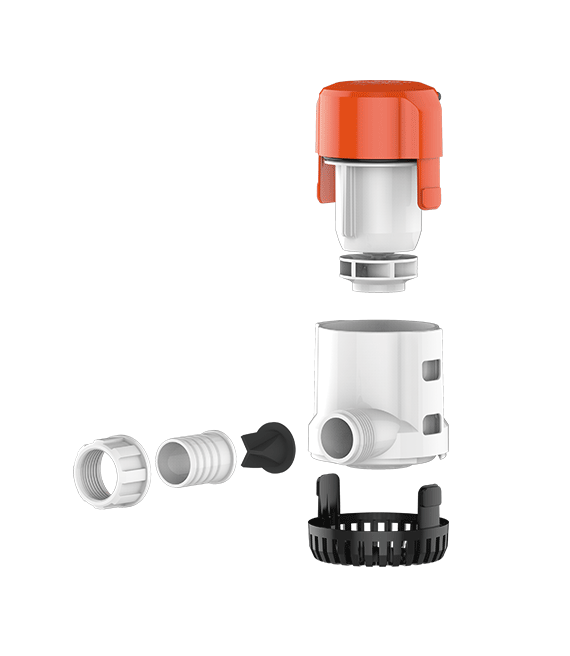

SEAFLO latest automatic 1500GPH, 2000GPH bilge pumps offer water evacuation without extra float switch needed. SEAFLO electronic sensing series bilge pumps turn the pump impeller every 2-1/2 minutes for approximately 0.5 second. If water is present, the pump will sense resistance and will continue to run until all water is removed. This system is a compact way of constantly sensing for water presence. New innovative split quick-connect joint design removes and installs in seconds! Change pump never been so easy. No need to disconnect base or plumbing when replacing pump, which can meet the needs of most users. Just replace the motor that is all. Include Anti-Airlock protection and exclusive moisture tight seals, marine grade blocked wiring. Our larger impeller design and more robust motor allow us to outperform our competitors. Pumps offer a choice of straight or 90 degree ports to suit your installation.

Request quotation

FEATURES & BENEFITS

13A-FEATURES & BENEFITS(1).jpg

MORE FEATURES & BENEFITS

•  Compact automatic pump-no float switch needed

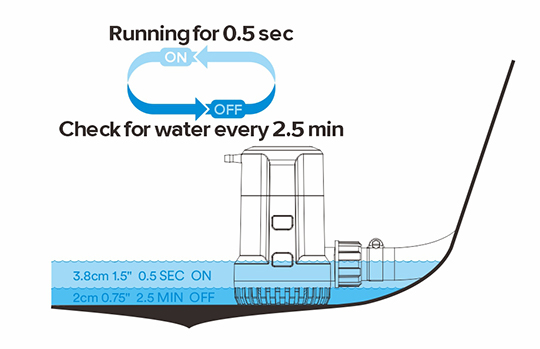

•  Check for water every 2.5 minutes, Runs for a half second

•  CE, RoHS, ISO 8846, ISO8849 standards

•  Submersible and ignition protected

•  High efficiency, low amp motor, quiet operation

•  Stainless-steel motor shaft

•  Includes check valve to prevent water back flow

•  Include removable discharge straight fitting

•  Anti-Airlock protection

•  Motor can be sold separately

•  Exclusive moisture tight seals

•  2 Year Warranty

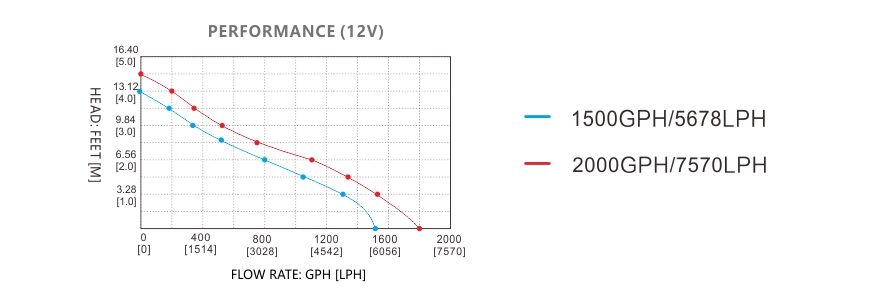

STANDARD PUMP CONFIGURATIONS

Model

Motor Model

Flow rate

Volts

Current

Head

SFBP1-G1500-13B

SFMA1-G1500-13B

1500GPH

12V

4.5A

5m/16.4'

SFBP2-G1500-13B

SFMA2-G1500-13B

1500GPH

24V

2.5A

5m/16.4'

SFBP1-G2000-13B

SFMA1-G2000-13B

2000GPH

12V

7.5A

5.5m/18.04'

SFBP2-G2000-13B

SFMA2-G2000-13B

2000GPH

24V

4.0A

5.5m/18.04'










SHIPPING INFORMATION

Unit Weight


Selling Unit Size (L x W x H)


Selling Unit Weight


Master Carton Size (L x W x H)

( 21.46" x 11.61" x 11.81")

54.5 x 29.5 x 30 cm

Master Carton Qty

24 pcs

Master Carton Weight

46.30 lbs (21 kg)

Master Carton Volume

0.048 m³
