13A SERIES 1500/2000 GPH Non-Automatic Submersible PUMPS

small submersible pump ,12v submersible pump,submersible water pump

Voltage:12V / 24V

Flow Rate:1500/2000 GPH

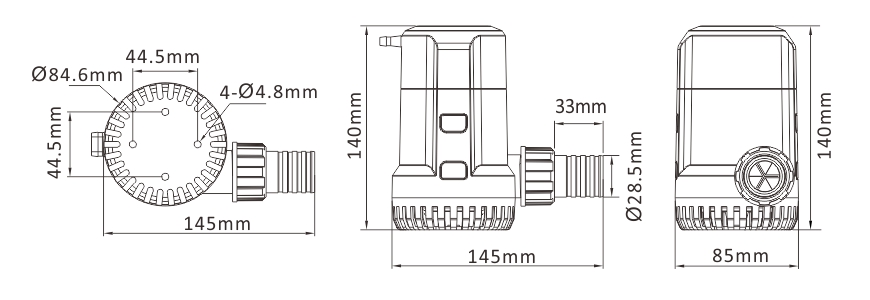

Outlet Dia:1-1/8" (29mm)

Application Scenarios:Drainage of accumulated water

Motor:Cartridge Pump Replacement Motors(sold separately)

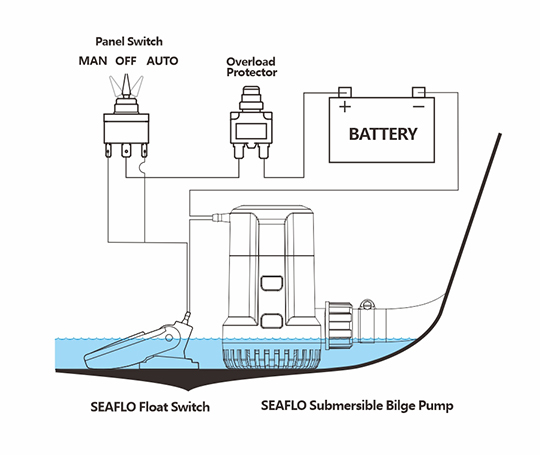

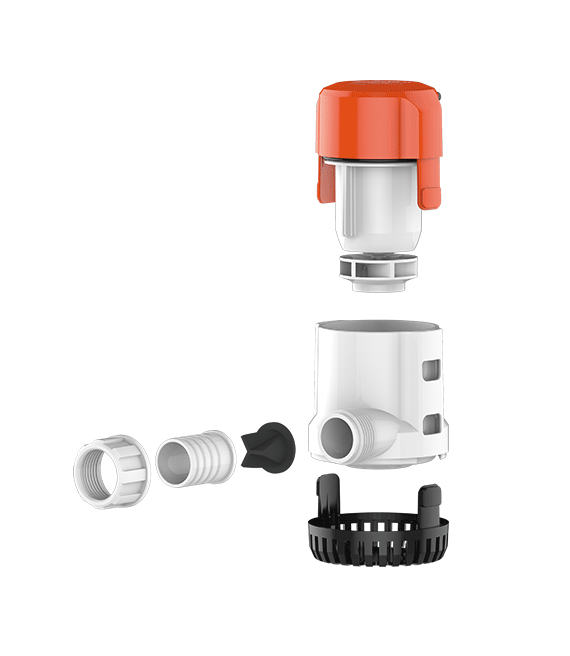

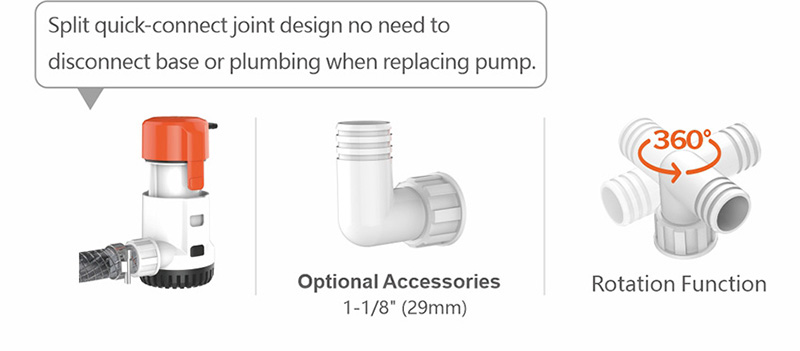

SEAFLO 12V Electric Marine Submersible non-automatic 1500GPH,2000GPH bilge pumps offer water evacuation activated by a panel or float switch. Include Anti-Airlock protection and exclusive moisture tight seals, marine grade blocked wiring. Pumps offer a choice of straight or 90 degree ports to suit your installation. Our larger impeller design and more robust motor allow us to outperform our competitors. New innovative split quick-connect joint design removes and installs in seconds! Change pump never been so easy. No need to disconnect base or plumbing when replacing pump, which can meet the needs of most users. Just replace the motor that is all.

Request quotation

FEATURES & BENEFITS

13A-FEATURES & BENEFITS(0).jpg


MORE FEATURES & BENEFITS

•  CE, RoHS, ISO 8846, ISO8849 standards

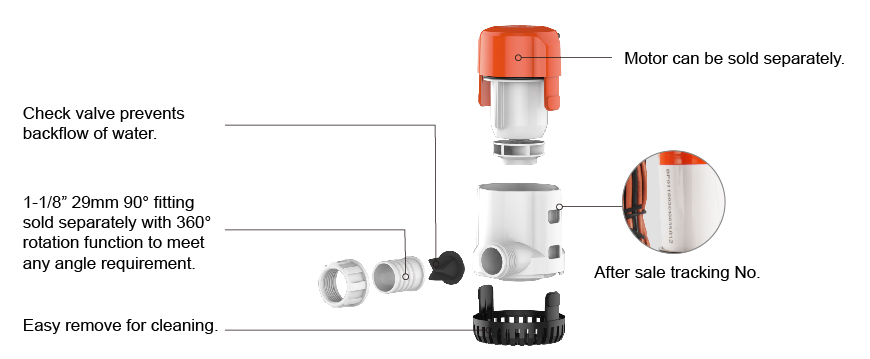

•  Includes check valve to prevent water back flow

•  Include removable discharge straight fitting

•  Submersible and ignition protected

•  High efficiency, low amp motor, quiet operation

•  Stainless-steel motor shaft

•  Anti-Airlock protection

•  Motor can be sold separately

•  Exclusive moisture tight seals

•  2 Year Warranty


STANDARD PUMP CONFIGURATIONS

Model

Motor Model

Flow rate

Volts

Current

Head

SFBP1-G1500-13A

SFMA1-G1500-13A

1500GPH

12V

4.5A

5m/16.4'

SFBP2-G1500-13A

SFMA2-G1500-13A

1500GPH

24V

2.5A

5m/16.4'

SFBP1-G2000-13A

SFMA1-G2000-13A

2000GPH

12V

7.5A

5.5m/18.04'

SFBP2-G2000-13A

SFMA2-G2000-13A

2000GPH

24V

4.0A

5.5m/18.04'










SHIPPING INFORMATION

Unit Weight


Selling Unit Size (L x W x H)


Selling Unit Weight


Master Carton Size (L x W x H)

( 20.46" x 11.61" x 11.81")

54.5 x 29.5 x 30 cm

Master Carton Qty

24 pcs

Master Carton Weight

46.30 lbs (21 kg)

Master Carton Volume

0.048 m³
