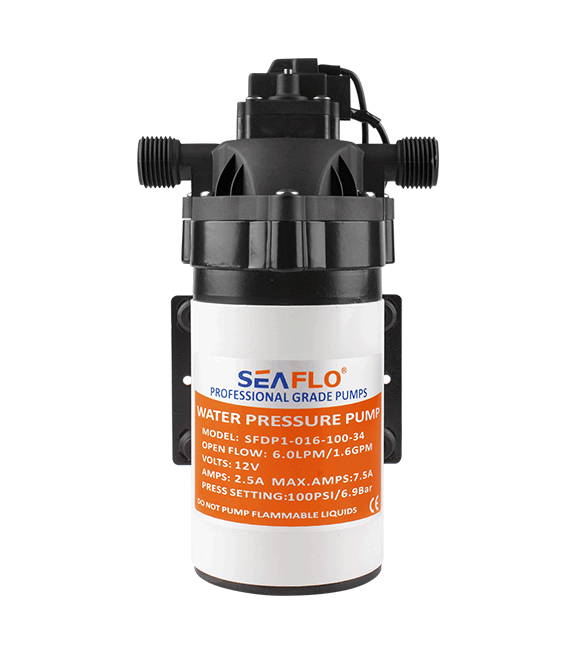

12v water pump,diaphragm pump,booster pump
Voltage：12V/24V
Open Flow：1.6-2.2GPM / 6.0-8.3LPM
Shut-off Pressure：70-100PSI / 4.8-6.9BAR
Priming Capabilities：6 feet (1.8 m) suction lift
Max Recommended Temperature：140° F (60° C）Max.
Material：EPDM(Valves) / Santoprene(Diaphragm)
Ports：1/2"-14 MNPT
Application Scenarios：water purification & drinking
The 34-Series is our continuous-duty on-demand positive displacement pump. It provides reliable performance in moderate water flow, high-pressure applications. This 3-chamber diaphragm pump provides up to 2.2 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage. Serves 2 or more 1/2” (13 mm) outlets. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the fixture is opened and closed. They are easy to install service and winterize.

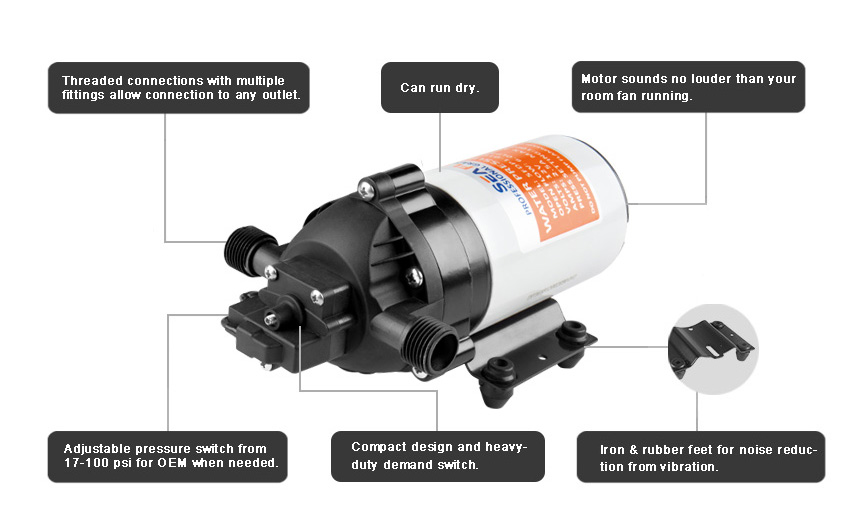

FEATURES & BENEFITS
MORE FEATURES & BENEFITS
• On-demand use
• Adjustable pressure switch
• Continuous Duty & Run dry safe
• Self priming
• Industry standard mounting pattern
• 2 Year Warranty
• 18AWG, 4.5" long Leads
• Meets or exceeds RoHS, SGS, and ISO standards
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow |
Max Draw |
Shut-off Pressure |
|
SFDP1-022-070-34 |
12V | 2.2 / 8.3 | 7.5A | 70 / 4.8 |
|
SFDP2-022-070-34 |
24V | 2.2 / 8.3 | 4.0A | 70 / 4.8 |
|
SFDP1-016-100-34 |
12V | 1.6 / 6.0 | 6.0A | 100 / 6.9 |
|
SFDP2-016-100-34 |
24V | 1.6 / 6.0 | 4.0A | 100 / 6.9 |
|
SFDPA1-010-060-34 |
115V | 1.0 / 3.8 | 1.2A | 60 / 4.1 |
|
SFDPA1-012-120-34 |
115V | 1.2 / 4.6 | 1.4A | 120 / 8.3 |
|
SFDPA1-014-100-34 |
115V | 1.4 / 4.3 | 1.6A | 100 / 6.9 |

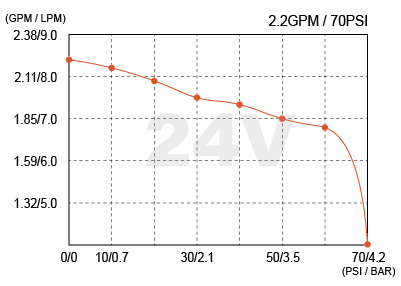

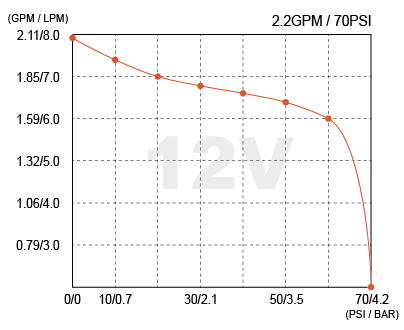

2.2GPM / 70PSI
|
PRESSURE |
12V |
24V |
|||||
|
FLOW |
CURRENT |
FLOW |
CURRENT |
||||
|
PSI |
BAR |
GPM |
LPM |
AMPS |
GPM |
LPM |
AMPS |
|
0 |
0 |
2.09 |
7.92 |
4.40 |
2.23 |
8.44 |
3.23 |
|
10 |
0.69 |
1.96 |
7.40 |
5.92 |
2.17 |
8.20 |
3.36 |
|
20 |
1.38 |
1.85 |
7.00 |
6.63 |
2.09 |
7.90 |
3.71 |
|
30 |
2.07 |
1.80 |
6.80 |
7.54 |
1.98 |
7.50 |
4.16 |
|
40 |
2.72 |
1.74 |
6.60 |
8.32 |
1.93 |
7.30 |
4.49 |
|
50 |
3.45 |
1.69 |
6.40 |
9.18 |
1.85 |
7.00 |
4.90 |
|
60 |
4.14 |
1.59 |
6.00 |
10 |
1.80 |
6.80 |
5.35 |
|
70 |
4.83 |
0 |
0 |
10.85 |
0 |
0 |
5.80 |

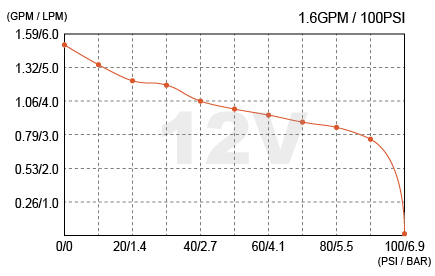

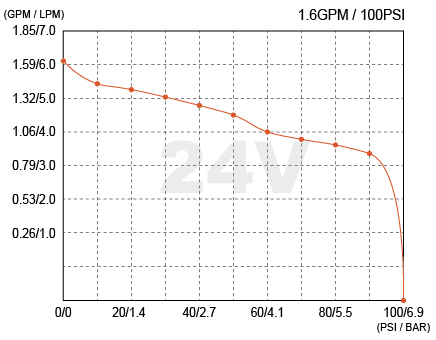

1.6GPM / 100PSI
|
PRESSURE |
12V |
24V |
|||||
|
FLOW |
CURRENT |
FLOW |
CURRENT |
||||
|
PSI |
BAR |
GPM |
LPM |
AMPS |
GPM |
LPM |
AMPS |
|
0 |
0 | 1.51 | 5.70 | 3.18 | 1.61 | 6.10 | 1.36 |
|
10 |
0.69 | 1.35 | 5.10 | 3.51 | 1.43 | 5.40 | 1.84 |
|
20 |
1.38 | 1.24 | 4.70 | 4.14 | 1.37 | 5.20 | 2.22 |
|
30 |
2.07 | 1.16 | 4.40 | 4.90 | 1.32 | 5.00 | 2.60 |
|
40 |
2.72 | 1.06 | 4.00 | 5.51 | 1.27 | 4.80 | 2.87 |
|
50 |
3.45 | 1.00 | 3.80 | 6.13 | 1.19 | 4.50 | 3.13 |
|
60 |
4.14 | 0.95 | 3.60 | 6.50 | 1.06 | 4.00 | 3.34 |
|
70 |
4.83 | 0.90 | 3.40 | 6.97 | 1.00 | 3.80 | 3.51 |
|
80 |
5.52 | 0.85 | 3.20 | 7.29 | 0.95 | 3.60 | 3.74 |
|
90 |
6.21 | 0.77 | 2.90 | 7.58 | 0.90 | 3.40 | 4.01 |
|
100 |
6.90 | 0 | 0 | 7.81 | 0 | 0 | 4.19 |
SHIPPING INFORMATION
|
Unit Pump Weight |
5.11 lbs (2.32 kg) |
|
Selling Unit Size (L x W x H) |
10.98"x 5.63"x 4.41" (27.9 x 14.3 x 11.2 cm) |
|
Selling Unit Weight |
5.62 lbs (2.55 kg) |
|
Master Carton Size (L x W x H) |
23.42" x 11.5" x 10.12" (59.5 x 29.2 x 25.7 cm) |
|
Master Carton Qty |
8 pcs |
|
Master Carton Weight |
46.96 lbs (21.3 kg) |
|
Master Carton Qty |
0.045 m³ |
