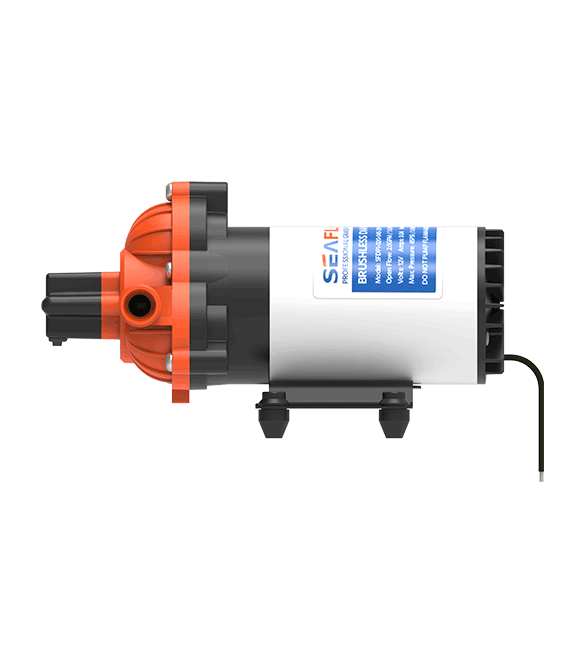

33W Series Brushless Automatic Demand Diaphragm Pump

12v dc water pump,brushless pump,electric diaphragm pump,food grade pump

Voltage:12V/24V/115V/230V

Open Flow:2.0-3.0GPM / 7.6-11.3LPM

Shut-off Pressure:45PSI / 3.1BAR

Priming Capabilities:6 feet (1.8 m) suction lift

Max Recommended Temperature:140° F (60° C)Max.

Material:EPDM(Valves) / Santoprene(Diaphragm)

Ports:1/2"-14 MNPT

Application Scenarios:Medical & health,Cleaning & sanitation

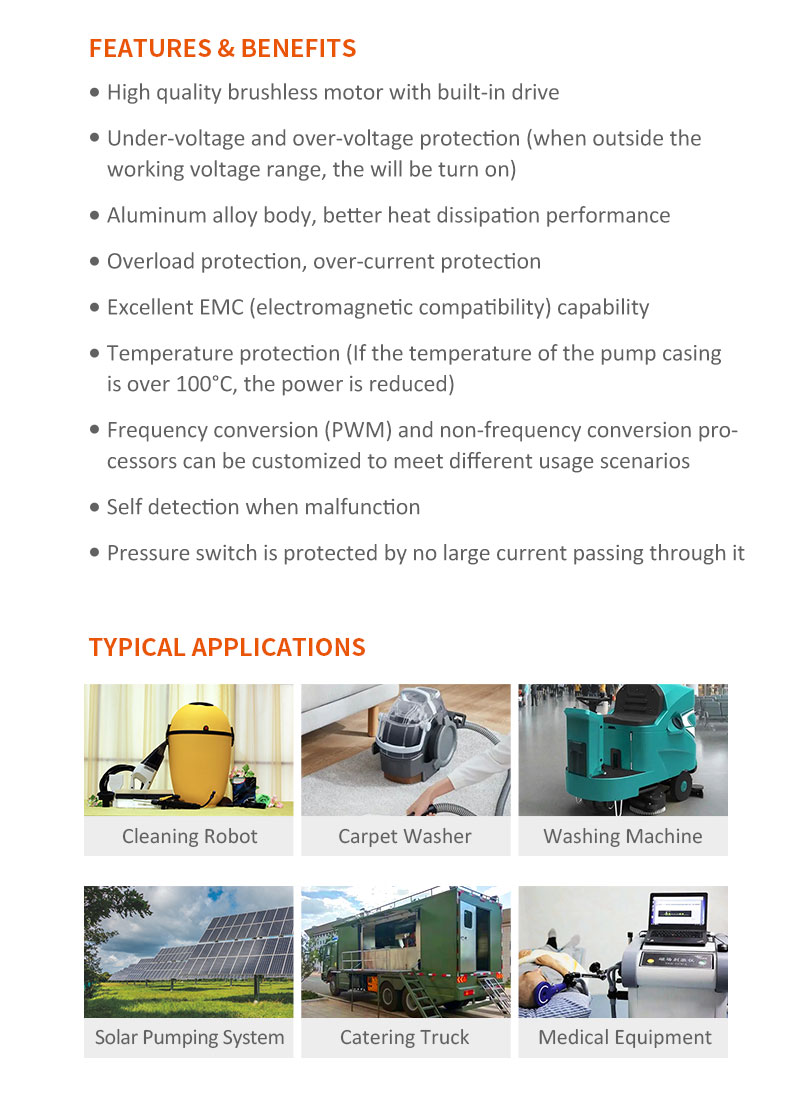

The 33W Series diaphragm pump uses brushless technology, which can provide longer service life. The feature of fast heat dissipation ensures the pump can continuous work. It provides up to 3.0GPM and 45PSI pressure, 6 vertical feet self-priming, and run dry ability. It also features protection system, such as over load, over or less voltage, thermal, blocked rotor protection. The pump has a built-in pressure switch, which automatically starts and stops when the tap is opened and closed. It is easy operation and easy drainage and antifreeze.

Request quotation





STANDARD PUMP CONFIGURATIONS

ModelVoltageVoltage range

Open Flow
(GPM/LPM)

Max Draw

Shut-off Pressure
(PSI/BAR)

SFDP1-020-045-33W

12V

8.4V~15.6V

2.0 / 7.65.045 / 3.0

SFDP2-020-045-33W

24V16.8V~31.2V
2.0 / 7.72.545 / 3.1

SFDPA1-020-045-33W

115V90V~140V(AC)2.0 / 7.81.045 / 3.2

SFDPA2-020-045-33W

230V180V~250V(AC)2.0 / 7.90.545 / 3.3

SFDP1-030-045-33W

12V

8.4V~15.6V

3.0 / 11.310.045 / 3.3

SFDP2-030-045-33W

24V16.8V~31.2V
3.0 / 11.37.045 / 3.3

SFDPA1-030-045-33W

115V90V~140V(AC)3.0 / 11.32.045 / 3.3

SFDPA2-030-045-33W

230V180V~250V(AC)3.0 / 11.31.045 / 3.3


SHIPPING INFORMATION

Unit  Weight

3.64 lbs1.65 kg

Selling Unit Size (L x W x H)

10.39" x 5.63" x 5.12"

26.4 x 14.3 x 13 cm

Selling Unit Weight

4.19 lbs1.9 kg

Master Carton Size (L x W x H)

23.62" x 11.02" x 11.42"

60 x 28 x 29 cm

Master Carton Qty

8 pcs

Master Carton Weight

35.71 lbs16.2 kg

Master Carton Volume

0.049 m³
