12v pressure pump，self priming pump，brushless diaphragm pump， ro booster pump
Voltage：12V/24V/220V
Open Flow：1.5-1.8GPM / 5.5-7.0LPM
Shut-off Pressure：80-160PSI / 5.5-11BAR
Priming Capabilities：6 feet (1.8 m) suction lift
Max Recommended Temperature：140° F (60° C）Max.
Material：EPDM(Valves) / Santoprene(Diaphragm)
Ports：3/8"-18 FNPT
Application Scenarios：Cleaning & sanitation, Water purification & drinking

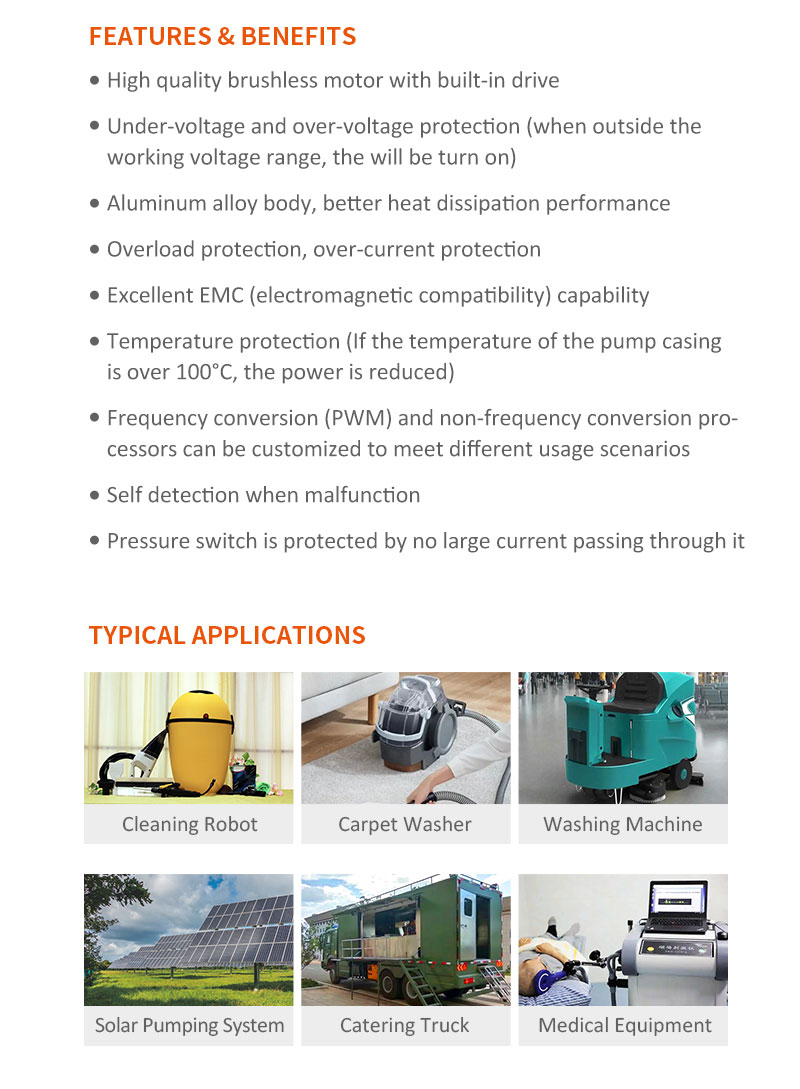

The biggest update of 31W Series diaphragm pump is using brushless technology, which can provide longer service life. The feature of fast heat dissipation ensures the pump can continuous work. It provides up to 1.8GPM and 160PSI pressure, 6 vertical feet self-priming, and run dry ability. It also features protection system, such as over load, over or less voltage, thermal, blocked rotor protection. The pump has a built-in pressure switch, which automatically starts and stops when the tap is opened and closed. It is easy operation and easy drainage and antifreeze.
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Voltage range | Open Flow | Max Draw | Shut-off Pressure |
SFDP1-015-080-31W | 12V | 8.4V~15.6V | 1.5 / 5.6 | 10.0 | 80 / 5.5 |
SFDP2-015-080-31W | 24V | 16.8V~31.2V | 1.5 / 5.6 | 8.0 | 80 / 5.5 |
SFDPA1-015-080-31W | 115V | 90V~140V（AC） | 1.5 / 5.6 | 3.0 | 80 / 5.5 |
SFDPA2-015-080-31W | 230V | 180V~250V（AC） | 1.5 / 5.6 | 1.5 | 80 / 5.5 |
SFDP1-015-120-31W | 12V | 8.4V~15.6V | 1.5 / 5.6 | 10.0 | 120 / 8.2 |
SFDP2-015-120-31W | 24V | 16.8V~31.2V | 1.5 / 5.6 | 8.0 | 120 / 8.2 |
SFDPA1-015-120-31W | 115V | 90V~140V（AC） | 1.5 / 5.6 | 3.0 | 120 / 8.2 |
SFDPA2-015-120-31W | 230V | 180V~250V（AC） | 1.5 / 5.6 | 1.5 | 120 / 8.2 |
SFDP1-015-160-31W | 12V | 8.4V~15.6V | 1.5 / 5.6 | 10.0 | 160 / 11.0 |
SFDP2-015-160-31W | 24V | 16.8V~31.2V | 1.5 / 5.6 | 8.0 | 160 / 11.0 |
SFDPA1-015-160-31W | 115V | 90V~140V（AC） | 1.5 / 5.6 | 3.0 | 160 / 11.0 |
SFDPA2-015-160-31W | 230V | 180V~250V（AC） | 1.5 / 5.6 | 1.5 | 160 / 11.0 |
SFDP1-018-080-31W | 12V | 8.4V~15.6V | 1.8 / 6.8 | 10.0 | 80 / 5.5 |
SFDP2-018-080-31W | 24V | 16.8V~31.2V | 1.8 / 6.8 | 8.0 | 80 / 5.5 |
SFDPA1-015-080-31W | 115V | 90V~140V（AC） | 1.8 / 6.8 | 3.0 | 80 / 5.5 |
SFDPA2-018-080-31W | 230V | 180V~250V（AC） | 1.8 / 6.8 | 1.5 | 80 / 5.5 |
SFDP1-018-120-31W | 12V | 8.4V~15.6V | 1.8 / 6.8 | 10.0 | 120 / 8.2 |
SFDP2-018-120-31W | 24V | 16.8V~31.2V | 1.8 / 6.8 | 8.0 | 120 / 8.2 |
SFDPA1-018-120-31W | 115V | 90V~140V（AC） | 1.8 / 6.8 | 3.0 | 120 / 8.2 |
SFDPA2-018-120-31W | 230V | 180V~250V（AC） | 1.8 / 6.8 | 1.5 | 120 / 8.2 |
SFDP1-018-160-31W | 12V | 8.4V~15.6V | 1.8 / 6.8 | 10.0 | 160 / 11.0 |
SFDP2-018-160-31W | 24V | 16.8V~31.2V | 1.8 / 6.8 | 8.0 | 160 / 11.0 |
SFDPA1-018-160-31W | 115V | 90V~140V（AC） | 1.8 / 6.8 | 3.0 | 160 / 11.0 |
SFDPA2-018-160-31W | 230V | 180V~250V（AC） | 1.8 / 6.8 | 1.5 | 160 / 11.0 |
SHIPPING INFORMATION
Unit Weight | 3.64 lbs（1.65 kg） |
Selling Unit Size (L x W x H) | 11.42" x 4.61" x 4.72" （29.0 x 11.7 x 12 cm） |
Selling Unit Weight | 4.19 lbs（1.9 kg） |
Master Carton Size (L x W x H) | 19.68" x 12.20" x 10.63" （50 x 31 x 27 cm） |
Master Carton Qty | 8 pcs |
Master Carton Weight | 35.71 lbs（16.2 kg） |
Master Carton Volume | 0.042 m³ |
